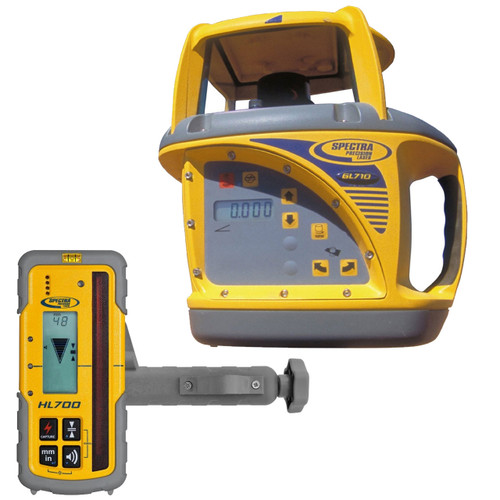

| Overview for the Spectra GL710 Grade Laser Accurate up to 3,000 feet, the Spectra GL710 is an automatic, self-leveling single grade construction laser suitable for site preparation, trenching, pipe-laying and machine control. It includes an HL700 laser receiver for digital readout of elevation and NiCad batteries for long lasting performance. The GL710 laser level features -0.5 to 25% grade range on a single axis and self-levels to 10%, making it ideal for general construction applications. You can mount this device on a 5/8-11 tripod thread. Spectra Precision Laser HL700 Laser Receiver Highly versatile laser receiver for basic and advanced leveling and aligning applications The Spectra Precision® HL700 Laserometer, a highly versatile laser receiver for basic and advanced leveling and aligning applications, is designed for general, concrete and site preparation contractors. The HL700 Laser Receiver is an easy-to-use tool that accurately measures elevations across the site, and is ideal for use with any rotating transmitter. The HL700 Laser Receiver features a digital readout of elevation that provides a numeric display of +/- 5 cm (+/- 2 inches). The readout is displayed on the large front and rear LCD's and shows exactly how far the elevation is from on-grade. Accurate measurements can be made without moving the rod clamp, saving time and increasing productivity. Selectable units of measure can be displayed meeting your application - mm, cm, ft, in or fractional inches |
| SPECTRA Precision GL710 Grade Laser FEATURES |
|
| Spectra Precision GL710 Laser HIGHLIGHTS |
|
| Features for the Spectra Precision HL700 Laser Receiver |
|
| Spectra Precision CTO GL710-10 Laser Package INCLUDES |
|
| Spectra GL700 SERIES GRADE LASER COMPARISON CHART |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Spectra Precision GL7OO Series Package Options | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Spectra Precision GL700 Series SPECIFICATION COMPARISON | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||
Spectra Precision GL710 — Straight Answers
From Spectra Precision's own documentation for the GL700 series, which we host on this site. If your question is not here, call 1-877-866-5721 and ask a person who sets these up.
What is the grade range on a GL710?
Single axis, -0.5 to +25% on the Y axis. There is no X-axis grade on a single grade laser - if you need to set grade on two axes at once, that is the GL720 or GL722.
What is the GL710 best suited to?
General construction, site preparation, trenching and pipe laying. It is the economical, easy-to-learn end of the series - one person, one grade, accurate to 900 metres in diameter.
How far will it reach?
900 metres - 3,000 feet - in diameter, and that is the same across the whole GL700 series. The range belongs to the transmitter, not the receiver, so it does not change with which receiver you pair it with.
What rotation speeds does it run, and which should I use?
300, 600 and 900 rpm, selected from the rotation-control button. For hand-held work on a grade rod any of them is fine. If you are running a machine receiver, use 600 rpm as a minimum and faster if you have it - the faster the head spins, the more times the beam crosses the receiver every minute and the more often the operator's display updates. On a dozer or a skid steer making quick changes in elevation, a slow laser leaves the display chasing the blade.
Which receivers does it work with?
Spectra Precision HL700 and CR600 receivers, and the Trimble LR410 machine receiver. The GL700 series is part of the Trimble Grade Control System family, so it also works alongside GCS300, GCS600 and GCS900 grade control systems for automatic lift and tilt.
Does it self-level?
Yes, automatically, across the whole grade range - which is what makes setup repeatable rather than something you fiddle with. It also carries active temperature compensation, so the beam holds its plane as the day warms up rather than drifting off it.
Is it built for a jobsite?
Fully sealed rugged aluminium housing, weather-resistant control panel, a built-in non-slip carrying handle and a protective lens hood for working in bad weather. The beam is high-powered and visible, which matters in dust.
What is the warranty?
Two years. Worth knowing: calibration is specifically not covered - keeping the laser in calibration is the owner's responsibility. We can check and certify one for you; call 1-877-866-5721.
Does this model have the radio remote?
No. The radio remote, PlaneLok, Grade Match Mode and Automatic Axis Alignment are the GL722 features. This model is the straightforward grade laser - set it up, set your grade, work to it. If you are regularly changing grade on a long pull, or you want to set grade from the cab, the GL722 is the one to look at and we would rather tell you that now than after you have bought.
Who am I buying from?
Contractors-Tools.com, an authorized Spectra Precision dealer. We set these up every week. Tell us the work and the machines and we will spec the laser and the receiver together before you order. Call 1-877-866-5721.
Source: Spectra Precision GL700 series brochure and complete user guide.
