Spectra Precision LL300N-X2 PRO Laser Package
with HL450 Receiver, RC601 Remote, Inches Rod, HD Tripod & Rechargeable Batteries
SKU: Spectra Precision LL300N-X2PRO • Complete PRO Kit — Remote Included — we only sell new lasers!
|
|
|
No Cost 5-Year Warranty offers no repair charge for parts and labor of the laser.
If Laser Unit fails in the first FIVE years — send it back and get it repaired for free!
|
Spectra Precision
Authorized Dealer • Contractors-Tools.com
|
FREE Same-Day Shipping
Order by 12 Noon CST • Ships Today
|
|
| Spectra Precision LL300N-X2 PRO Laser OVERVIEW |
The Spectra Precision Laser LL300N package is your complete medium-range, high-accuracy solution. Ideal for basic slope work such as driveways and ramps, checking or leveling elevations, concrete forms, footings and foundations for small -and- medium sized jobs, and for excavations, digging footings and septic tanks.
The Spectra LL300N features a rugged design with “hard hat” rotor protection that provides superior drop and weather protection. Built to withstand severe drops of up to 3-feet directly onto concrete, or up to 5 feet when pushed over on a tripod means less downtime and cost due to damage caused by accidental drop or tip-over and lower repair costs over the life of the product.
The Spectra LL300N’s fully automatic self-leveling capability provides fast, accurate setup. Rechargeable Ni-Cad battery pack or alkaline batteries keeps the unit working with no downtime due to power loss. Single cross-axis manual slope mode with cross-axis self-leveling allows grade matching for basic slope work, while maintaining accuracy in the cross-slope.
|
|
|
|
| Spectra Precision LL300N-X2 PRO Laser INCLUDES |
|

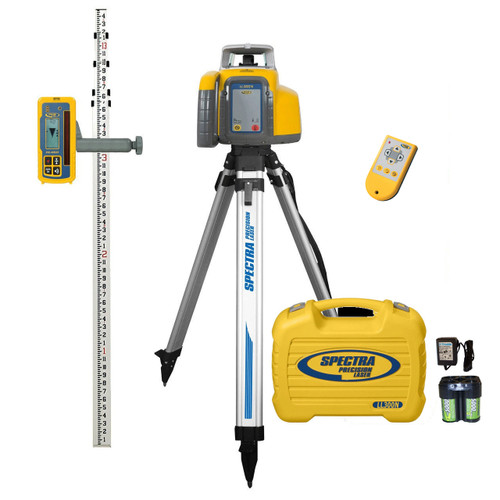

Spectra Precision LL300N-X2 PRO INCLUDES
You get the below components when you order an LL300N-X2 PRO
- LL300N Auto Self-Leveling Laser Level
- HL450 Laser Receiver (Laserometer) with C45 Receiver Clamp
- RC601 Remote Control — Required for Manual Grade / Slope Mode (Included)
- GR152 Aluminum 15-foot Grade Rod with Measurements in INCHES
- Q104025 Aluminum Tripod
- NiMH Rechargeable Battery Pack & Charger (Included)
- Small Carrying Case
- (4) D-Cell Alkaline Batteries (backup power)
|
|
|
|
|
|
|
HL450 Laser Receiver / Laserometer DETAILS — Included with the LL300N-X2 PRO
|
Spectra Precision
HL450 Laser Receiver
with C45 Rod Clamp
INCLUDED RECEIVER
|
The HL450 — Spectra's Standard Rod-Mounted Laser Receiver
When you're working on grade — setting forms, checking elevations, or grading a pad — you need a receiver that picks up the beam fast and tells you where you stand. The Spectra HL450 is a field-proven, no-nonsense rod-mounted receiver built for everyday construction use. It gives you a precise digital readout of exactly how far above or below grade you are — no guesswork, no moving the clamp to find on-grade, just a number on screen and you're moving.
|
|
|
|
|
Capture Height |
On-Grade Accuracy |
Drop Resistant |
Waterproof Rating |
What the HL450 Delivers on the Job:
- Digital readout display — exact distance above or below grade shown on screen, no need to move the clamp to find on-grade
- 4-inch capture height — double the industry standard, picks up the beam fast and keeps you in it
- Fraction & decimal display modes — switch between ft/in fractions or tenths to match how you work
- Works in direct sunlight — bright LED indicators visible in any lighting condition
- Audible + visual grade indicators — know your position with or without looking at the display
|
- 5-foot drop rating — survives real job site abuse, direct drop onto concrete
- Anti-strobe sensor — blocks construction strobe lights from triggering false readings, so you always lock onto the real laser signal
- IP67 fully waterproof — dust-proof and waterproof rated; rain won't slow down job completion
- Includes C45 rod clamp — mounts directly to your grade rod, ready to work out of the box
- Compatible with all Spectra rotating lasers — LL300N, LL400, GL series, and more
|
|
|
Ideal Applications
|
Site Grading
& Excavation
|
Drainage
& Pipe Laying
|
Farm & Land
Leveling
|
Foundation
& Footing Work
|
Elevation Checks
& Surveying
|
|
|
| SPECTRA LL300N-X2 PRO Laser SPECIFICATIONS |
| Laser Source | 635 – 670 nm visible, Class 3A/3R |
| Laser Accuracy | 3/32 inch per 100 foot | 15 arc seconds |
| Operating Receiver Range (Diameter) | with HL450 Receiver 1,650 foot |
| Self-Leveling Range | ±5° |
| Compensation Method | Electronic Self Leveling |
| Power Source | 4 “D” Rechargeable or Alkaline Batteries |
| Battery Life | Rechargeable: 45 hours | Alkaline: 90 hours |
| Battery Status LED | Flashing Red LED |
| Battery Recharging Time | Less than 10 hours |
| Rotation Speed | 600 rpm |
| Out of Level (HI)-Warning | Rotor stops, red out-of-level LED blinks |
| Out of Level Warning at Receiver | Programmable at dealer (CR600 receiver only) |
| Machine Control Compatible | Yes |
| Protective Rotor Cage (removable) | Yes |
| Drop Height on Concrete | 3 feet |
| Single Axis Manual Slope Mode | Yes with optional RC601 remote (w/self-leveling mode on the second axis) |
| External Remote Control (Range) | 160 feet |
| Tripod Mount (Horizontal & Vertical) | 5/8”–11 |
| Operating Temperature | –4 °F to 122 °F |
| Storage Temperature | –4 °F to 158 °F |
| Waterproof | Yes, IP54 |
| Size (inch) | 9.6 length × 6.5 width × 7.3 height |
| Weight (pounds) | 6 |
| Warranty | 5-Years |
|
|
| Spectra Precision LL300N-X2 PRO — Kit Comparison Chart |
|
|
|
|
|
|
|
|
|
|
RECEIVER
OPTIONS |
Remote
Control |
Measuring
Rod – 15’ |
Aluminum
TRIPOD |
Rechargeable
Batteries |
LARGE
SYSTEM
CASE |
SMALL
CASE |
ADD TO
CART |
|
|
|
| INCLUDED: RC601 Infrared Remote Control |
RC601
Remote
|
✓ RC601 Remote Control is Included in This Kit — Slope-Ready Out of the Box.
This PRO kit includes the RC601 remote, giving you full manual grade capability from day one. One person can match any slope from the rod position — no walking back to the laser, no helper needed.
What the RC601 does for you on the job:
- Set and adjust slope from the rod position — no back-and-forth to the laser
- Run single-axis manual slope with cross-axis self-leveling maintained automatically
- One-person slope operation — saves time and eliminates the need for a second crew member
- Works up to 160 feet from the laser
- Included in this kit — no additional purchase required
|
|
|
|
| LL100N vs LL300N Laser COMPARISON |
| SPECTRA LASER COMPARISON CHART |
LL100N |
LL300N |
| Operating Range (Diameter) | 1,000 ft | 1,650 ft |
| ACCURACY (@ 100-feet) | 1/8-inch | 3/32-inch |
| Laser Receiver | HR320 | HL450 |
| Battery Life (Alkaline) | 80 hours | 90 hours |
| Weight | 3.3 lbs | 6 lbs |
| WARRANTY with “Knock Over” Drop Specification | 3 ft | 5 ft |
| Horizontal Electronic self-leveling | yes | yes |
| Vertical Capability (Manual mode only) | yes | yes |
| Water Resistant / ‘Rain Proof’ | yes | yes |
| Metal sunshade & patented lighthouse to seal & protect the rotor | no | yes |
| Manual ‘Slope’ mode with Cross-Axis Self Leveling (with RC601 remote) | no | yes |
| NiMH Rechargeable battery option (vs Alkaline only on LL100) | no | yes |
| “Laserometer” Receiver (TWICE the PhotoCell length + Numeric Readout) | no | yes |
| 5 YEAR ‘No Cost’ WARRANTY (LL100 has only 1 year ‘No Cost’ + 2 Years Limited) | 3-Year limited | 5-Year no cost |
|
|
|
|
Spectra Laser Line COMPARISON CHART
|
|
|
|
| Spectra Precision LL300N Laser Level DOWNLOADS |
| LL300N Datasheet page 1 |
LL300N Datasheet page 2 |
|
|
| LL300N User Guide |
|
|
|
Laser Orientation:
Horizontal
Application:
Exterior
Laser Color:
Red
Laser Range (diameter):
1,650 feet
Laser Accuracy:
3/32-inch
Grade Type / Range:
Manual Grade with Remote
Plumb Point:
No
Battery Type:
Rechargeable
Receiver:
HL450 (4-inch Capture Height)
Remote Control:
Yes
Tripod:
Standard
Measuring Rod:
16' Foot Inches
