Spectra Precision LL300N Laser Level Package
with HL450 Laser Receiver - Large 4-inch Reception Height
|
|
This Spectra LL300N is a NEW LASER - we only sell new lasers!
|
|
|
No Cost 5-Year Warranty offers no repair charge for parts and labor of the laser.
If Laser Unit fails in the first FIVE years - send it back and get it repaired for free! |
| Spectra Precision LL300N Laser OVERVIEW |
The Spectra Precision Laser LL300N package is your complete medium-range, high-accuracy solution. Ideal for basic slope work such as driveways and ramps, checking or leveling elevations, concrete forms, footings and foundations for small -and- medium sized jobs, and for excavations, digging footings and septic tanks.
The Spectra LL300N features a rugged design with "hard hat" rotor protection that provides superior drop and weather protection. Built to withstand severe drops of up to 3-feet directly onto concrete, or up to 5 feet when pushed over on a tripod means less downtime and cost due to damage caused by accidental drop or tip-over and lower repair costs over the life of the product.
The Spectra LL300N's fully automatic self-leveling capability provides fast, accurate setup. Rechargeable Ni-Cad battery pack or alkaline batteries keeps the unit working with no downtime due to power loss. Single cross-axis manual slope mode with cross-axis self-leveling allows grade matching for basic slope work, while maintaining accuracy in the cross-slope. |
|
|
| Spectra Precision LL300N Laser INCLUDES |
|

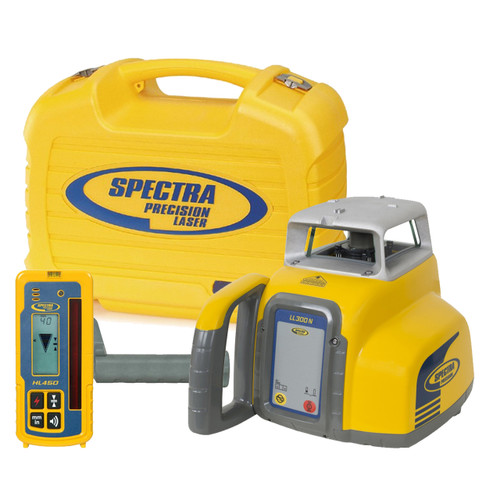

You get the below components when you order an LL300N
• LL300N Auto Self-Leveling Laser Level
• HL450 Laser Receiver - Laserometer (Large 4-inch Reception Height)
• Receiver Clamp C45
• Small Carrying Case
• (4) D-Cell Alkaline Batteries |
|
| HL450 Laser Receiver / Laserometer DETAILS - Included with the LL300N Package |
The Spectra HL450 Laser Receiver is a Highly versatile receiver for basic and advanced leveling and aligning
 The Spectra Precision® HL450 Laserometer is an easy-to-use tool that accurately measures elevations across the site, and is ideal for use with any rotating transmitter.
The HL450 features a digital readout of elevation that provides a numeric display of ± 40 mm or ±1.5 inches. The readout is displayed on the large front and rear LCD’s and shows exactly how far the elevation is from on-grade. Accurate measurements can be made without moving the rod clamp, saving time and increasing productivity.
The HL450 has a 4-inch reception height, double the typical industry standard, which allows quick acquisition of the laser beam. Also included is a patented anti-strobe sensor that prevents construction lights from setting off the receiver and makes it easier to identify the laser beam signals.
The Laserometer is designed to survive the tough construction site conditions. It is totally waterproof and can withstand a drop up to 5-feet onto concrete.
Spectra HL450 Laserometer Features and Benefits:
- Digital Readout of Elevation allows faster readings by displaying the exact numerical distance from grade, eliminating the need to move the receiver to get to "on-grade".
- Anti-Strobe Sensor stops construction strobe lights from setting off the receiver and eliminates phantom strikes for easier identification of true laser beam signals.
- Large reception height allows faster readings by acquiring the beam quickly, and makes it easier to stay in the beam.
- Durable in tough environments provides less downtime due to damage or service requirements after accidental drops.
|
HL450 Laser Receiver Applications
Setting and checking jobsite elevation and depth for:
• Cut and fills
• General grading
• Foundations, forms, and footings
• Excavations |
|
| Spectra Precision LL300N Laser APPLICATIONS |
• Checking/setting elevations, concrete forms, footings, and foundations for small- and medium-sized jobs
• Basic slope work such as driveways and ramps
• Excavations, digging footings and septic tanks |
| Spectra Precision LL300N Laser KEY FEATURES |
• Fully Automatic self-leveling provides fast and accurate set-up
• Accuracy 3/32-inch at 100 foot
• Working range of 1,650 foot diameter
• Simple one-button operation for quick start up
• Height of Instrument Alert : unit stops rotating when jarred to avoid erroneous readings
• Single axis manual slope mode with 'cross-axis' self-leveling allowing grade matching for basic slope work, while maintaining accuracy in the cross-axis using the (optional) RC601 Remote Control
• Easy grade matching using the (optional) RC601 remote control from the rod position
• Extremely durable and portable
• 5-Year warranty
|
| Spectra Precision LL300N Laser Kit Comparison Chart |
|
|
| |
| SPECTRA LL300N Laser SPECIFICATIONS |
| Laser Source |
635 – 670 nm visible, Class 3A/3R |
| Laser Accuracy |
3/32 inch per 100 foot |
| |
15 arc seconds |
| Operating Receiver Range (Diameter) |
with HL450 Receiver 1,650 foot |
| Self-Leveling Range |
±5º
|
| Compensation Method |
Electronic Self Leveling |
| Power Source |
4 “D” Rechargeable or Alkaline Batteries |
| Battery Life |
Rechargeable: 45 hours
Alkaline: 90 hours |
| Battery Status LED |
Flashing Red LED |
| Battery Recharging Time |
Less than 10 hours |
| Rotation Speed |
600 rpm |
| Out of Level (HI)-Warning |
Rotor stops, red out-of-level LED blinks |
| Out of Level Warning at Receiver |
Programmable at dealer
(CR600 receiver only) |
| Machine Control Compatible |
Yes |
| Protective Rotor Cage (removable) |
Yes |
| Drop Height on Concrete |
3 feet |
| Single Axis Manual Slope Mode |
Yes with optional RC601 remote
(w/self-leveling mode on the second axis)
|
| External Remote Control (Range) |
160 feet |
| Tripod Mount (Horizontal & Vertical) |
5/8"–11 |
| Operating Temperature |
–4 ºF to 122 ºF |
| Storage Temperature |
–4 ºF to 158 ºF |
| Waterproof |
Yes, IP54 |
| Size (inch) |
9.6 length × 6.5 width × 7.3 height |
| Weight (pounds) |
6 |
| Warranty |
5-Years |
