Spectra Precision LL300N-X22 Laser Level Package
with Deluxe HL760 Laser Receiver, Measuring Rod INCHES, HD Tripod and Small Case |
16 foot Grade Rod that displays measurement in INCHES
Complete Laser System Package with small carrying case - we only sell new lasers!
|
|
|
|
No Cost 5-Year Warranty offers no repair charge for parts and labor of the laser.
If Laser Unit fails in the first FIVE years - send it back and get it repaired for free!
|
|
| Spectra Precision LL300N-X22 Laser OVERVIEW |
The Spectra Precision Laser LL300N package is your complete medium-range, high-accuracy solution. Ideal for basic slope work such as driveways and ramps, checking or leveling elevations, concrete forms, footings and foundations for small -and- medium sized jobs, and for excavations, digging footings and septic tanks.
The Spectra LL300N features a rugged design with "hard hat" rotor protection that provides superior drop and weather protection. Built to withstand severe drops of up to 3-feet directly onto concrete, or up to 5 feet when pushed over on a tripod means less downtime and cost due to damage caused by accidental drop or tip-over and lower repair costs over the life of the product.
The Spectra LL300N's fully automatic self-leveling capability provides fast, accurate setup. Rechargeable Ni-Cad battery pack or alkaline batteries keeps the unit working with no downtime due to power loss. Single cross-axis manual slope mode with cross-axis self-leveling allows grade matching for basic slope work, while maintaining accuracy in the cross-slope. |
|
|
| Spectra Precision LL300N-X22 Laser INCLUDES |
|

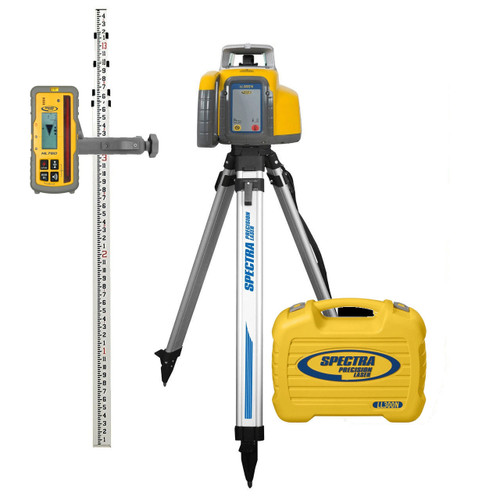

You get the below components when you order an LL300N-X22
|
• LL300N Auto Self-Leveling Laser Level
• HL760 Deluxe Laser Receiver - Laserometer
• C70 Deluxe Receiver Clamp with Bulls Eye Rod Level
• 16-foot Aluminum Grade Rod with Measurements in INCHES
• Aluminum Tripod
• "small" Carrying Case (Holds Laser and Receiver ONLY) 5289-0025
• (4) D-Cell Alkaline Batteries
|
|
| Spectra HL760 Digital Readout Receiver - INCLUDED in LL300N-X22 Package |
Highly versatile receiver for basic and advanced leveling and aligning applications
|
 |
HL760 Laserometer Laser Receiver KEY FEATURES:
- LARGE 5-INCH RECEPTION HEIGHT
- Digital readout of elevation
- Exact distance from on-grade displayed
- Anti-strobe sensor to prevent false reading from jobsite strobe lights
- Withstands a drop of up to 10-foot
User Benefits:
- No need to go “on-grade” to measure
- Saves considerable time
- Reduces rework by allowing remote monitoring
- Increases reliability, accuracy and durability
|
| Spectra Precision HL760 Digital Readout Receiver SPECIFICATIONS |
| Digital readout units |
mm, cm, feet, inches, fractional inch |
| Large Reception height |
5-inches |
| Six On-grade sensitivities |
Ultra fine ~1/32 inch
Super fine ~1.16 inch
Fine ~1/8 inch
Medium ~1/4 inch
Coarse ~1/2 inch
Calibration Mode ~1/64 inch
|
| Battery Life (2 AA) |
60+ Hours continuous operation |
| Auto shut-0ff |
20 minutes / 24 hours |
| Operating Temp |
-4°F to 122°F |
| Dust and Waterproof |
Yes - IP67 |
| Weight |
13.1 oz |
| Warranty |
3 Years "No Excuses" |
|
• Checking/setting elevations, concrete forms, footings, and foundations for small- and medium-sized jobs
• Basic slope work such as driveways and ramps
• Excavations, digging footings and septic tanks |
| Spectra Precision LL300N Laser KEY FEATURES |
• Fully Automatic self-leveling provides fast and accurate set-up
• Accuracy 3/32-inch at 100 foot
• Working range of 1,650 foot diameter
• Simple one-button operation for quick start up
• Height of Instrument Alert : unit stops rotating when jarred to avoid erroneous readings
• Single axis manual slope mode with 'cross-axis' self-leveling allowing grade matching for basic slope work, while maintaining accuracy in the cross-axis using the (optional) RC601 Remote Control
• Easy grade matching using the (optional) RC601 remote control from the rod position
• Extremely durable and portable
• 5-Year warranty
|
| Spectra Precision LL300N-X Laser Kit Comparison Chart |
|
|
| |
| SPECTRA LL300N Laser SPECIFICATIONS |
| Laser Source |
635 – 670 nm visible, Class 3A/3R |
| Laser Accuracy |
3/32 inch per 100 foot |
| |
15 arc seconds |
| Operating Receiver Range (Diameter) |
with HL450 Receiver 1,650 foot |
| Self-Leveling Range |
±5º
|
| Compensation Method |
Electronic Self Leveling |
| Power Source |
4 “D” Rechargeable or Alkaline Batteries |
| Battery Life |
Rechargeable: 45 hours
Alkaline: 90 hours |
| Battery Status LED |
Flashing Red LED |
| Battery Recharging Time |
Less than 10 hours |
| Rotation Speed |
600 rpm |
| Out of Level (HI)-Warning |
Rotor stops, red out-of-level LED blinks |
| Out of Level Warning at Receiver |
Programmable at dealer
(CR600 receiver only) |
| Machine Control Compatible |
Yes |
| Protective Rotor Cage (removable) |
Yes |
| Drop Height on Concrete |
3 feet |
| Single Axis Manual Slope Mode |
Yes with optional RC601 remote
(w/self-leveling mode on the second axis)
|
| External Remote Control (Range) |
160 feet |
| Tripod Mount (Horizontal & Vertical) |
5/8"–11 |
| Operating Temperature |
–4 ºF to 122 ºF |
| Storage Temperature |
–4 ºF to 158 ºF |
| Waterproof |
Yes, IP54 |
| Size (inch) |
9.6 length × 6.5 width × 7.3 height |
| Weight (pounds) |
6 |
| Warranty |
5-Years |
| |
| |
|
