LEICA PIPER 200G
Line and grade in the pipe, over the top or in the manhole.
The Leica Piper 200G works inside a 4 in pipe, over the top or in the manhole: green beam, grade from -10% to +25%, up to 650 ft, with Alignmaster auto-targeting.
LEICA PACKAGE6016958

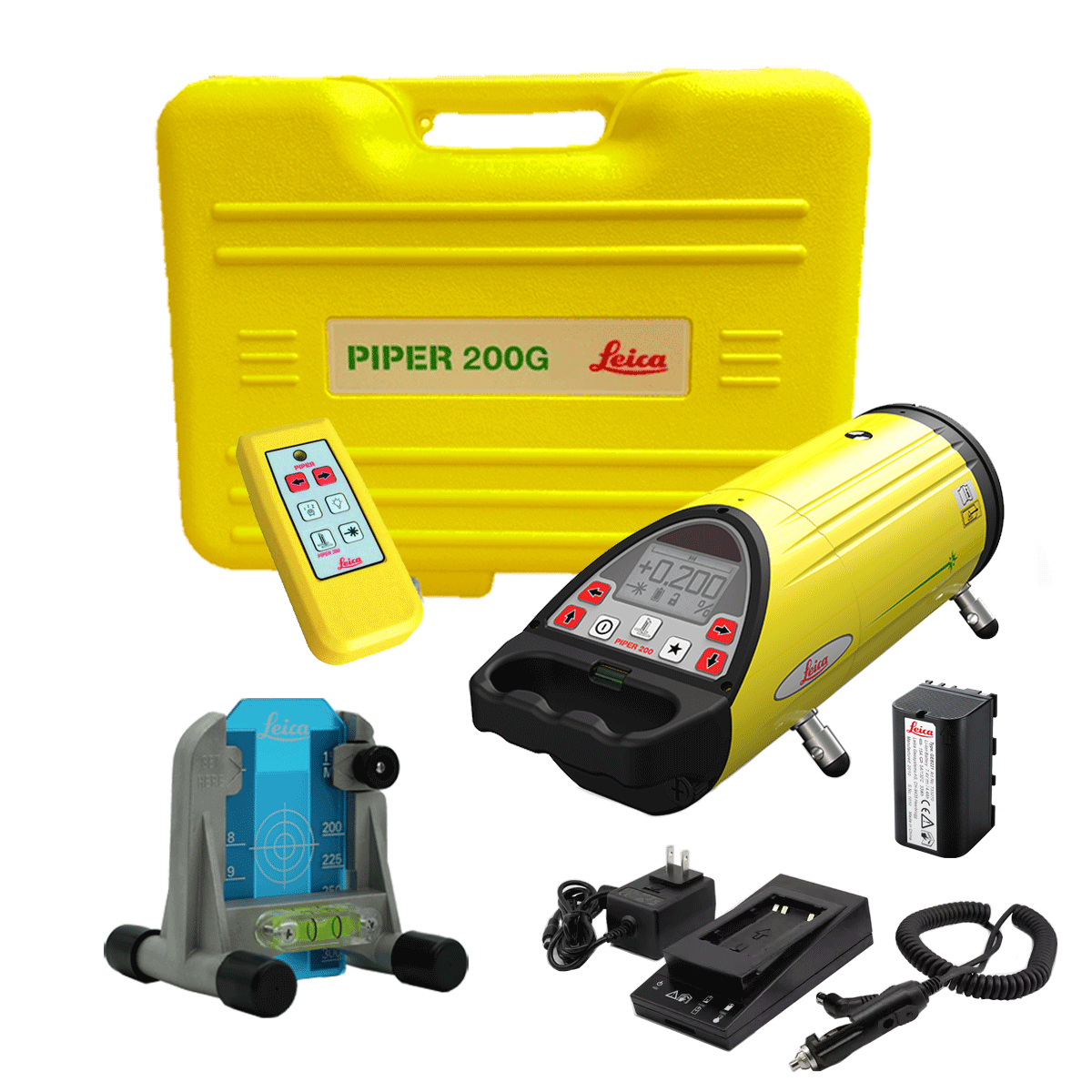

Leica Piper 200G Kit — Package 6016958






The world’s most versatile pipe lasers

Solid performance in the pipe, over the top or in the manhole. A rugged cast-aluminium Piper that keeps working in tough jobsite conditions, sized to go where a pipe laser has to go.




Green beam
The Piper 200G’s green 520 nm beam is about four times more visible than red, according to Leica, so you can work farther from the instrument and keep a clear spot even in bright conditions.
Compact and rugged
One of the smallest pipe lasers on the market, built to fit inside a 100 mm / 4 in pipe, in a cast-aluminium housing sealed to IPX8. Roll the housing up to ±3° and automatic grade compensation corrects the grade error for you.
Leica laser experience
Leica Geosystems has built construction lasers longer than anyone in the market, and backs the Piper with factory service and support through an authorized distributor like us.
Long-range precision
Up to 200 m / 650 ft of working range with ±1/16" at 100 ft self-levelling accuracy, in sun, rain or the bottom of a wet trench.
In the pipe, over the top, in the manhole
In the Pipe
Self-centering rubber-tipped feet and a robust cast-aluminum housing ensure maximum reliability for pipeline construction.
Over the Top
The optional scope and mount kit provide a user-friendly solution for easy setup and operation in above-ground tasks.
In the Manhole
A unique design and wide, stable base make it easy to set up, even in the tightest inverts.
Leica Piper 200G - 6016958 Pipe Laser
GREEN BEAM PIPE LASER with LASER PLUMB REFERENCE
THE NEW STANDARD - World's most versatile and accurate pipe laser
Leica Piper 200G – The Most Versatile Pipe Laser
The Leica Piper 200G sets the standard for performance, accuracy, and simplicity in sewer construction and pipe applications. Designed for versatility, its compact size allows it to fit inside a 4-inch pipe , ensuring easy and efficient setup, even in the smallest inverts.
Unmatched Application Versatility
Whether inside the pipe, over the top, or in the manhole, the Leica Piper 200G delivers outstanding performance.
Built for Extreme Conditions
100% Waterproof – Sealed to IPX8 protection standard for superior durability.
Positive Pressure Nitrogen Seal – Ensures ultimate reliability in any job site conditions.
LEICA PIPER 200G GREEN BEAM PIPE LASER HITS THE TARGET EVERY TIME - Leica 6016958
Precision and Performance Wherever Line and Grade Are Required
The Leica Piper 200G is designed for superior accuracy and ease of use in any pipe or sewer application.
Large, Clear Display – Easily read grade, line position, battery status, and level indication.
Bright, Focused Beam – Maintains a crisp, clear spot over long distances for optimal visibility.
Automatic Grade Compensation – Detects and corrects grade errors while self-leveling across the full grade range, eliminating the need to tip the laser for steep slopes.
Smart Features for Increased Productivity
The Piper 200G is equipped with advanced, user-friendly features to enhance efficiency on the job site
Strobe Mode – Multi-functional remote control strobes the laser beam for increased visibility.
Top Pivot Point & Battery Saving Mode – Extends operational efficiency and battery life.
Alignmaster Function – A patented automatic targeting system that quickly finds the target for fast second-day setups, reducing downtime.
Built for Performance in Any Condition
Whether in the pipe, over the top, or in the manhole , the Leica Piper series provides the reliability and confidence you need. Built with a rugged aluminum housing , these pipe lasers deliver exceptional durability and performance, even in the toughest job site conditions.
The laser finds the target for you
Patented automatic targeting on the Leica Piper 200G: what it does, why it saves time, and when you will use it.

The target is in the pipe; Alignmaster brings the beam to it. Set the target, set the laser, and let the Piper 200G search for the target and centre the beam on it.
What it is
Alignmaster is Leica’s patented automatic targeting system, built into the Piper 200G. Instead of you steering the beam onto the target, the laser starts a scanning process that locates the target down the pipe and locks on to it. Leica builds it into the Piper 200 series only.
Why it matters
Lining a pipe laser up on the target by hand means nudging the line left and right until the beam sits in the centre of the target. Alignmaster does that for you, so the setup is faster and you are back to laying pipe sooner. Less time setting up is less downtime for the whole crew.
When you use it
Second-day setups. When you come back to the same run the next morning and set the laser back up, Alignmaster finds the target for you instead of starting the line from scratch. It is the feature that pays for itself on long sewer and storm runs that take several days.
Piper 100 vs Piper 200G: how the line gets on the target
Getting the line onto the target
Piper 100: By hand: adjust the line left or right until the beam is centred on the target
Piper 200G: Automatic: the laser searches for the target and finds it
Second-day setup on the same run
Piper 100: Repeat the manual line-up
Piper 200G: Alignmaster finds the target again for you
How you start it
Piper 100: Line buttons on the laser, or the 746157 remote
Piper 200G: The Alignmaster button on the laser keypad, or the 746157 remote from up to 500 ft in front
Remote in this package. The 746157 IR remote included here has an auto-alignment command, so you can have the laser find the target from the far end of the pipe, up to 150 m / 500 ft in front of it.
Five keys run the whole laser
The keypad from the Leica Piper user manual. The display above it shows the grade, battery, and line and grade lock.

- aLeft and Right Line buttonsMove the line left or right to put the beam on the target.
- bUp and Down Grade buttonsChange the grade in small steps.
- cPower buttonTurns the Piper on and off.
- dAlignmaster buttonStarts Alignmaster: the laser scans to locate the target and locks on to it.
- eStar buttonUsed with the Grade buttons for large grade changes: press star, then enter the grade digit by digit.
The Leica 746157 IR remote
Run the Piper from the far end of the pipe: up to 150 m / 500 ft in front of the laser, 10 m / 35 ft behind it. Button functions from the Leica Piper user manual.

- aLeft and Right Line buttonsInitial alignment, and centring the beam in the pipe for second-day setups.
- bSleep / Standby buttonPuts the Piper in stand-by with only the display showing the sleeping Piper icon. It stays in stand-by for up to 72 hours, then shuts off completely.
- cAlignmaster buttonStarts the scanning process to locate and lock on the target for second-day setups.
- dStrobe buttonMakes the beam strobe or flash very rapidly, creating a brighter beam for viewing the target.
- ePivot Light buttonTurns on the pivot point light for better visibility when setting up the Piper in the manhole.
- fSending LEDFlashes to show the remote is sending a signal to the Piper.
How a Piper setup works
From Leica’s Piper demonstration: set the line, set the elevation, enter the grade, align the beam.
Video: Leica Geosystems, on the Contractors Tools YouTube channel.
- Set it on the line. Position the Piper on the centreline of the proposed or existing pipeline. The self-centering, rubber-tipped feet keep it aligned inside the pipe.
- Set the elevation and turn it on. Establish the correct elevation and switch the Piper on. During start-up it shows the battery status, and the owner’s name if one is stored, for security.
- Enter the grade. The main screen shows the grade in large, clear numbers. Use the up and down arrows for small changes; for a larger grade, press the star button and enter it digit by digit.
- Align the beam. Steer the beam onto the target with the buttons on the laser or with the remote from the far end of the pipe. On the Piper 200G, Alignmaster can do this for you: it seeks the target and centres the beam on it.
- Let it hold grade. Cross-axis grade compensation keeps the Piper on grade even when it is rolled up to ±3°, and icons on the display show battery status and line and grade lock.
The three settings behind every pipe run
Every Piper setup comes down to three numbers. Definitions from the Leica Piper user manual.

Line
The position of the laser beam relative to the centreline of the pipe being laid. Set the line by aligning the beam with the next manhole, using the Left and Right Line buttons or the remote; on the Piper 200G, Alignmaster can find the target for you.

Grade
The amount of rise and fall over the distance of the pipe being laid. Set the grade by entering the percentage on the Piper’s display, anywhere from -10% to +25%, and the laser tilts the beam to match.
Leica Piper 200G features
Compact and Powerful
The pipe laser that fits inside a 4-inch pipe
Automatic Grade Compensation
With the housing rolled up to ± 3°, the Piper will compensate and correct for the grade errors.
Heavy-Duty trivet
With easy grip handle, heavy base and clear markings on the pole to adjust and set the height.
Multiple function remote
Works up to 500-feet for line control and other features
Updated LCD Display
Even easier to read menu, with a bright, LCD Display
Tough and Reliable
Make Adjustments from afar with the 746157 Remote Control
More smart functions
- Auto-Alignment Mode - Piper 200G with Alignmaster with patented automatic targeting system searches and finds the target.
- Note this function is helpful for second day set ups.
- Laser "standby" to save battery power
- Auto-Centering
- Grade Match for quick grade reference and elevation matching
Leica 746157 remote control features
- Remote 746157 INCLUDED with Leica 6016958 Package
- Auto-alignment - Allows fast and easy acquisition of target.
- Beam mode to manage brightness
- Auto-Centering Grade Match for quick grade reference and elevation matching
Specifications
Leica Piper Series data sheet (939945en, 12.20). Battery times depend on conditions.
| Laser beam | Green, 520 nm |
| Laser class | 3R (max. average radiant power 4.8 mW) |
| Working range | Under 200 m / 650 ft |
| Grade range | -10% to +25% |
| Self-levelling range | -15% to +30% |
| Automatic grade compensation | Housing rolled up to ±3° |
| Line movement | 6 m at 30 m / 20 ft at 100 ft |
| Self-levelling accuracy | ±1.5 mm at 30 m / ±1/16" at 100 ft (at 25°C / 77°F) |
| Auto-targeting (Alignmaster) | Yes |
| Wireless remote distance | Front 150 m / 500 ft, back 10 m / 35 ft |
| Battery | Li-Ion, up to 40 h |
| Charging time | 4 h |
| Operating temperature | -20°C to +50°C / -4°F to +122°F |
| Dimensions (diameter × length) | 96 mm × 267 mm / 3.9 in × 10.5 in |
| Weight | 2.0 kg / 4.4 lb |
| Housing | Cast aluminium |
| Protection class | IPX8 |
Every Leica Piper pipe laser package we sell
Pick the laser (Piper 100, or Piper 200 / 200G with Alignmaster), the beam colour, and whether you want the remote in the box.
| Package | Laser | Remote | Our price |
|---|---|---|---|
| Piper 100 · Red beam | |||
| 6000230 | Piper 100 | No remote (sold separately) | $4,634.00 |
| 748704 | Piper 100 | 746157 IR remote included | $4,895.00 |
| Piper 200 · Red beam · Alignmaster | |||
| 6000231 | Piper 200 | No remote (sold separately) | $5,575.00 |
| 748710 | Piper 200 | 746157 IR remote included | $5,765.00 |
| Piper 200G · Green beam · Alignmaster | |||
| 6016959 | Piper 200G | No remote (sold separately) | $6,150.00 |
| 6016958 You are here | Piper 200G | 746157 IR remote included | $6,395.00 |
Every package: laser, in-pipe target (red 725858 on the Piper 100 and 200, blue 915443 on the 200G), 6 in self-centering feet, Li-Ion battery, charger and hard case. Prices are live from the store.
Feet for your pipe size: what comes in the box, and what is optional
The feet hold the Piper on the centreline of the pipe, and their length sets the elevation for that pipe size. The drawings show the same Piper centred in pipe from small to large diameter, and the five feet lengths from 6 in to 12 in.


In the box with every Piper
Self-centering feet, 6 in / 150 mm (Leica 746161), set of 4. These fit 150 mm / 6 in pipe.
Laying 100 mm / 4 in pipe? Take the feet off completely; the Piper sits in the pipe on its own body.
Optional, for larger pipe
Leica makes feet for 200 mm (8 in), 225 mm (9 in), 250 mm (10 in) and 300 mm (12 in) pipe. Each is sold as a single foot; the Piper stands on four, so order four for a set.
- 746162, 8 in foot · $21.60
- 746163, 9 in foot · $21.60
- 746164, 10 in foot · $21.60
- 746165, 12 in foot · $21.60
- Replacement 6 in foot: 746161, 6 in foot · $21.60
Every size at once: the Leica 6016066 Piper Green Accessory Package (6016066) has full sets of four in 8, 9, 10 and 12 in, the large blue target insert and a spare battery.
The Leica 746158 trivet: why you want one


The trivet is not included in any Piper package. It is the stand that holds the Piper off the invert, for manhole and trench setups and for setting elevation by height instead of by feet.
Sets the beam height
The trivet holds the Piper at a set height above the invert, so you can set elevation when the feet alone are not enough, in the manhole or in a trench.
Solid on rough ground
A heavy base that stays put on rock and mud, so the beam stays where you set it.
Easy to read and adjust
An easy-grip handle and clear markings on the pole for setting and resetting the height (Leica data sheet).
Faster to the target
Leica: the heavy-duty trivet helps guide the beam to the target faster.
Leica 746158 Trivet Assembly with Mounting Bracket · $675.00
Piper accessories
Targets, battery, charger, remote, trivet and case for the Leica Piper 200G. Prices are live from the store.

Leica 6016066 Piper Green Accessory Package
Full sets of four self-centering feet in 8, 9, 10 and 12 in, the large blue target insert for 15 to 21 in pipe, and a spare GEB221 Li-Ion battery. One package and the Piper 200G is ready for most pipe on the job, with a second battery in the truck. Leica 6016066 · $703.80
