LEICA 680
Dial the grade in on both axes and the laser holds it.
The Leica Rugby 680 takes a percentage on X and Y up to ±8%, re-checks itself as the day warms up, and works a 2,950 ft diameter with the Rod Eye 120.
LEICA PACKAGE6011159dual axis
Two numbers. That is the whole job.
Arrow in the fall you need on X and on Y, press the grade button, and the Rugby 680 tilts its plane to match, up to ±8% on both axes. Leave both at 0.00% and it is a self-levelling horizontal laser for forms and footings.

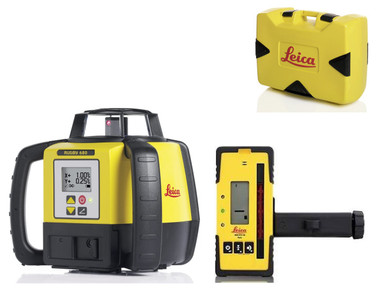

Leica Rugby 680 Kit — Package 6011159
Leica Rugby 680 RED Beam Rotary Laser Package INCLUDES
Overview for the Leica 6011159 Rugby 680 Red Beam Rotary Dual Grade Laser with Rod Eye 120 and Li-Ion Rechargeable Batteries
SEMI-AUTOMATIC DIAL-IN GRADE LASER
Bring simplicity to construction applications with the Leica Rugby 680 semi-automatic grade laser. Designed for contractors who do mostly flat work but occasionally need to create single or dual slopes, Rugby 680 construction lasers are easy to use and effective in all levelling and grading tasks.
SLOPES DONE EASILY
Easily perform levelling and slope applications with the semi-automatic Leica Rugby 680 dual and single grade lasers. Their simple user interface, four-button menu and digital display allow quick and convenient dial-in grade for increased productivity and efficiency on site.
ACCURATE PERFORMANCE THROUGHOUT THE DAY
Eliminate costly errors and downtime coming from temperature changes on the jobsite. The Smart Slope function of the Rugby 680 continuously monitors temperature changes over time. This unique functionality assures accuracy and solid laser performance over the course of the day.
BEST VALUE FOR THE MONEY
Great value for money with PROTECT by Leica Geosystems service offering. It includes Lifetime Manufacturer's Warranty and the five year No Cost* period.
Packages with the long-lasting Li-Ion rechargeable battery allowing up to 75 hours of operation per charge.
IP 67 protection standard assuring reliable performance even under harsh jobsite environment.
- Slopes done easily
- Accurate performance throughout the day
- A great general construction laser with digital grade capability
- Dial-in grade in single or dual axis, easy and fast at the touch of a button
- Unique Smart Slope function continuously monitors time and temperature changes
Three things a dial-in grade laser does that a manual one cannot
You dial the grade in
Up and Down arrows and a grade button. Enter X and Y as percentages, up to ±8%, and the laser tilts the plane for you.
It checks itself through the day
Smart Slope watches the temperature. When it changes 5°C (or 2°C on FINE) the laser returns to level, checks, and goes back to your grade.
It knows when the tripod moved
H.I. Alert in level mode and Bump Alert in grade mode stop the beam from quietly working at the wrong height after a knock.
Five controls on one panel
- aUp and Down arrowsEnter a grade, or move through the Option Menu.
- bLCD displayX and Y grade on one screen. 0.00% on both axes is Level mode for forms and footings.
- cPower buttonTurns the Rugby on or off.
- dLaser emission LEDOn when the beam is on, flashing when the beam is flashing.
- eGrade buttonStarts grade entry and accepts settings in the Option Menu.
Handle, battery compartment and charge jack
Where to find each part on the Rugby 680 itself.
- aCarry handleMoulded grip for carrying the laser and setting it on the tripod.
- bLCD displayX and Y grade, battery and alerts on one screen.
- cButtonsPower, grade and the Up/Down arrows for dial-in grade.
- dBattery compartmentTakes the A600 lithium-ion pack or the alkaline D-cell holder.
- eCharge jackCharges the A600 lithium-ion pack in the laser. A full charge takes up to five hours.
How to use the Leica Rugby 680
Leica Geosystems how-to video, from the Contractors Tools channel.
How to Use the Leica Rugby 680 Rotating Laser
Bring high accuracy and simple operation to levelling and construction grading with the semi-automatic Leica Rugby 680 dual-grade rotating laser.
- High accuracy at long distances. Pair it with a Leica Rod Eye digital receiver for accuracy and extended range.
- Smart features. Memory returns to your last grade settings, and Smart Slope watches site temperature through the day.
- Dial-in, dual-axis grade. Enter grades on the display and set X and Y at the same time.
Watch product specialist Clint Smith dig into the Rugby 680’s features, with practical application tips.
Leica Rod Eye 120 — the part you hold all day
- 70 mm (2.76 in) extended detection window
- Numeric readout: None
- Detection accuracies: Fine ± 1 mm · Medium ± 2 mm · Coarse ± 3 mm
- 9 arrow channels, anti-strobe: No
- 2,950 ft working diameter with the Rugby 680
- 2 × AA, 50+ hours, IP67, rod bracket included
How it all fits in the case
Leica’s own case drawing. Not every item shown ships in every package: the rechargeable battery and charger come only with rechargeable versions. What ships in yours is the list in What’s in the Box above.
- aRugby laser
- bRod Eye receiver on its bracket
- cBattery pack: Li-Ion on rechargeable versions only, alkaline holder on alkaline versions
- d2 × AA cells for the receiver
- eUser manual
- fSlot for a second receiver (sold separately)
- g4 × D-cells (alkaline versions)
- hCharger (rechargeable versions only; not in alkaline packages)
What the spec sheet leaves out
Level mode
Grade shown as 0.00% on both axes: the Rugby 680 self-levels to a horizontal plane for forms and footings.
Bump Alert
Active whenever a grade is entered. If the tripod is disturbed the laser beeps; if the height has not changed, hold the grade button 1.5 seconds to carry on. FINE or COARSE in the Option Menu.
Smart Slope
Monitors ambient temperature. On a change of 5°C (COARSE) or 2°C (FINE) the grade mechanism returns to level, checks it, and returns to your grade.
H.I. Elevation Alert
On by default every time the laser is turned on; works in Level mode and on any axis left at 0.00%.
Grade memory
Set up the next morning, let it self-level, then hold the grade button 1.5 seconds: the Rugby 680 drives straight back to yesterday’s X and Y grades. Leica shows it holding the grade even with the battery taken out.
Grade steps
Grade enters in 0.05% steps up to 3.00%, and in 0.10% steps above 3.00%, out to ±8%.
Hands off while it sets
After the last button press the laser waits 8 seconds, self-levels, then drives the beam to your grade. Do not touch or bump it during this.
Option Menu
Hold the Up arrow and Power buttons 1.5 seconds. Set Smart Slope and Bump Alert (FINE, COARSE or OFF), H.I. Alert on or off at start-up, display contrast, and percent or per mil.
Batteries
The A600 lithium-ion pack runs the laser up to 75 hours on a full charge, and charges in a maximum of five hours. The laser also takes four D-cells in an alkaline holder.
Specifications
Leica Rugby 600 Series data sheet, 08.26 edition.
| Function | Self-levelling horizontal, dial-in grade in dual axis (semi-automatic) |
| Grade range | ± 8% in X and Y |
| Laser class | Class 1 |
| Laser type | 635 nm (visible red beam) |
| Accuracy | ± 1/16" at 100 ft (± 1.5 mm at 30 m) |
| Self-levelling range | ± 5° |
| Rotation | 10 rps |
| Working diameter with the Rod Eye 120 | 2,950 ft (900 m) |
| Smart Slope | Yes |
| Bump Alert | Yes |
| H.I. elevation alert | Yes |
| Power in this kit | Rechargeable lithium-ion pack with charger |
| Run time on a full charge | Up to 75 h (A600 lithium-ion pack) |
| Charge time | 5 hours maximum (A100 charger) |
| Working temperature | -4°F to +122°F (-20°C to +50°C) |
| Protection (with and without battery) | IP67 |
| Dimensions (H × W × D) | 212 × 239 × 192 mm (8.4 × 9.4 × 7.6 in) |
| Weight with battery | 2.56 kg (5.6 lb) |
| Warranty | Lifetime manufacturer’s warranty; 5 years no cost (PROTECT by Leica Geosystems) |
| Part number | 789922 |
| Extended detection window | 70 mm (2.76 in) |
| Numeric readout | None |
| Detection accuracies | Fine ± 1 mm · Medium ± 2 mm · Coarse ± 3 mm |
| Arrow display channels | 9 |
| Anti-strobe | No |
| Battery | 2 × AA, 50+ hours |
| Protection | IP67 |
| Warranty | 3 years no cost |
Every Leica Rugby 680 package we sell
Pick by receiver, by power, and by whether you want the tripod and rod in the box.
| Package | Receiver | Power | Case & extras | Working diameter | Our price |
|---|---|---|---|---|---|
| Alkaline Powered with Rod Eye 120 | |||||
| 6011160 | Rod Eye 120 | Alkaline batteries | Laser carrying case | 2,950 ft | $2,109.90 |
| 6011160-K1 | Rod Eye 120 | Alkaline batteries | Tripod + grade rod (tenths) | 2,950 ft | $2,259.90 |
| 6011160-K2 | Rod Eye 120 | Alkaline batteries | Tripod + grade rod (inches) | 2,950 ft | $2,259.90 |
| Rechargeable Laser with Rod Eye 120 | |||||
| 6011159 You are here | Rod Eye 120 | Lithium-ion pack + charger | Laser carrying case | 2,950 ft | $2,398.50 |
| 6011159-K1 | Rod Eye 120 | Lithium-ion pack + charger | Tripod + grade rod (tenths) | 2,950 ft | $2,548.50 |
| 6011159-K2 | Rod Eye 120 | Lithium-ion pack + charger | Tripod + grade rod (inches) | 2,950 ft | $2,548.50 |
| Alkaline Powered with Rod Eye 140 | |||||
| 6006007 | Rod Eye 140 Classic | Alkaline batteries | Laser carrying case | 3,600 ft | $2,172.30 |
| 6006007-K1 | Rod Eye 140 Classic | Alkaline batteries | Tripod + grade rod (tenths) | 3,600 ft | $2,322.30 |
| 6006007-K2 | Rod Eye 140 Classic | Alkaline batteries | Tripod + grade rod (inches) | 3,600 ft | $2,322.30 |
| Rechargeable Laser with Rod Eye 160 | |||||
| 6006010 | Rod Eye 160 Digital | Lithium-ion pack + charger | Laser carrying case | 3,600 ft | $2,503.80 |
| 6006010-K1 | Rod Eye 160 Digital | Lithium-ion pack + charger | Tripod + grade rod (tenths) | 3,600 ft | $2,653.80 |
| 6006010-K2 | Rod Eye 160 Digital | Lithium-ion pack + charger | Tripod + grade rod (inches) | 3,600 ft | $2,653.80 |
Same Rugby 680 laser in every package. Prices are live from the store.
Rugby 610 vs 620 vs 640 vs 640G vs 680 vs 60DG
The 610 is one button and level only, the 620 adds manual slope, the 640 and 640G add vertical and the remote, the 680 dials in grade on both axes, and the 60DG holds a dialed-in dual grade fully automatically at up to 15 rps.
| Technical data | Rugby 610 | Rugby 620 | Rugby 640 | Rugby 640G | Rugby 680 This model | Rugby 60DG |
|---|---|---|---|---|---|---|
| Functionality | Self-levelling horizontal, one button | Self-levelling horizontal & manual slope in X, Y or both axes | Horizontal, vertical, 90° & manual slope in dual axis | Horizontal, vertical, 90° & manual slope in dual axis | Horizontal, dial-in grade in dual axis | Horizontal & laydown vertical, fully automatic dial-in grade in dual axis |
| Grade range | – | – | – | – | ± 8% dual grade | ± 10% both axes, 15% single axis |
| Laser class | Class 1 | Class 1 | Class 2 | Class 2 | Class 1 | Class 1 |
| Beam | 635 nm red | 635 nm red | 635 nm red | 520 nm green | 635 nm red | 635 nm red |
| Accuracy | ± 3/32" at 100 ft | ± 3/32" at 100 ft | ± 3/32" at 100 ft | ± 3/32" at 100 ft | ± 1/16" at 100 ft | ± 1/16" at 100 ft |
| Self-levelling range | ± 5° | ± 5° | ± 5° | ± 5° | ± 5° | ± 5° |
| Rotation | 10 rps | 10 rps | 0, 2, 5, 10 rps | 0, 2, 5, 10 rps | 10 rps | 5, 10, 15 rps |
| Scanning, plumb, sleep mode | – | – | Yes | Yes | – | Not listed by Leica |
| Working diameter, Rod Eye 120/120G | 2,600 ft (800 m) | 2,600 ft (800 m) | 1,650 ft (500 m) | 1,300 ft (400 m) | 2,950 ft (900 m) | 3,000 ft (900 m) with the Rod Eye 105B |
| Working diameter, Rod Eye 140/160 | 3,600 ft (1,100 m) | 3,600 ft (1,100 m) | 2,000 ft (600 m) | – | 3,600 ft (1,100 m) | – |
| RC400 remote | – | – | 650 ft (200 m) | 650 ft (200 m) | – | RC60 remote, 1,000 ft (300 m) |
| Run time, Li-Ion | Up to 120 h | Up to 120 h | Up to 80 h | Up to 70 h | Up to 75 h | Over 40 h |
| Run time, alkaline | Up to 60 h | Up to 60 h | Up to 60 h | Up to 60 h | Up to 60 h | Over 60 h |
| Working temperature | 14°F to 122°F | -4°F to 122°F | -4°F to 122°F | -4°F to 122°F | -4°F to 122°F | -4°F to 122°F |
| Protection | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| No-cost warranty | 5 years | 5 years | 5 years | 5 years | 5 years | 5 years |
| Lowest price by receiver | 6011150 / RE120 $928.00 6008614 / RE140 $992.00 6008616 / RE160 $1,036.00 | 6011152 / RE120 $1,172.00 6005983 / RE140 $1,236.00 6005985 / RE160 $1,280.00 | 6005987 / RE140 $1,530.00 | 6011486 / RE120G $1,891.25 | 6011160 / RE120 $2,109.90 6006007 / RE140 $2,172.30 6006010 / RE160 $2,503.80 | 6020270 / RE105B $3,365.00 |
Every figure is from the Leica Rugby 600 Series data sheet (851210en, 08.26) and the Rugby 60DG data sheet (1077863en, 06.26). Working diameter depends on the receiver. Prices are live from the store.
