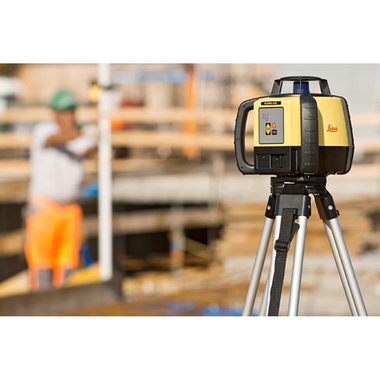

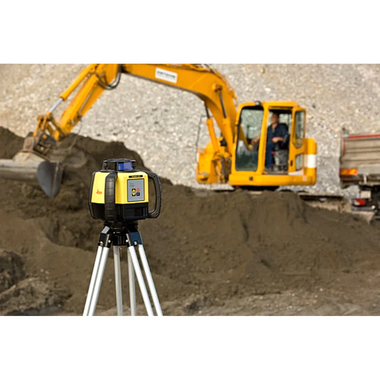

Overview for the Leica 6005983 Rugby 620 Red Beam Rotary Laser with Rod Eye 140 and Alkaline Battery
The rotating laser is designed for formwork and concrete applications. It comes with an alkaline battery pack and classic receiver, offering an operating range of 3,600' (1,100 m). It features an IP67 protection class, making it splash, water and dustproof.
Leica 6005983 Rugby 620 FEATURES:
- Self-leveling, horizontal laser
- Designed for general contractors who mainly perform formwork and concrete applications
- IP67 water and dust protection
- Manual Single Axis Slope Capable
- Slope matching up to 8% in single axis
Leica Rugby 620 RED Beam Rotary Laser Package INCLUDES
- Leica Rugby 620 Rotary Laser Transmitter (6005983) 790359
- Leica Rod Eye 140 Detector with bracket (789923)
- Carrying Case (845145)
- Alkaline Battery Batteries Holder Included (790419)
- Alkaline Batteries Included
- Leica Hard Carry Case (813922)
Leica Rugby 620 Rotary Laser SPECIFICATIONS:
- Functionality: Self-Leveling, horizontal, Single Axis manual slope Capable
- Laser Class: Class 2
- Laser Type: 635 nm (Visible Beam)
- Plumb Up: No
- Accuracy: +/- (3/32" at 100 ft)
- Self-leveling Range: +/- 5 degrees
- Rotation: 10 rps
- Scanning: N/A
- Scan90: N/A
- Plumb down: N/A
- Sleep Mode: Yes
- Max Range with the RE140: 2,000 feet diameter
- Operation Time with Li-Ion Battery: 40hrs
- Operation Time with Alkaline Battery: 60hrs
- Working Temperature: -20 to 55 degrees C (-4 to 122 degrees F)
- Protection (with and without battery): IP67
- Warranty: 3 year Limited Lifetime warranty
| |
|
|
|
|
|
| Technical Data |
Rugby 610 |
Rugby 620 |
Rugby 640 |
Rugby 670 |
Rugby 680 |
| Weight |
5.2 lbs |
5.2 lbs |
5.6 lbs |
5.6 lbs |
5.6 lbs |
| Functionality |
- Self-Leveling
- Horizontal
- One Button Laser |
- Self-Leveling
- Horizontal
- Single Axis Manual Slope |
- Self-Leveling
- Horizontal and Vertical
- Dual Axis Manual Slope
- 90° Plumb Beam UP |
- Self-Leveling
- Horizontal
- Single Axis Dial-in Grade |
- Self-Leveling
- Horizontal
- Dual Axis Dial-in Grade |
| Product Type |
General Construction |
General Construction |
Multi-Purpos Horiz / Vert |
Semi-Automatic Grade |
Semi-Automatic Grade |
| Laser Class |
CLASS 2 |
| Laser Type |
635 nm (visible beam) |
| Plumb Up |
- |
- |
Yes |
- |
- |
Measured in 68° F
Horizontal / Vertical |
+/- 3/32 inch at 100 feet |
+/- 1/16 inch at 100 feet |
| Grade Range |
- |
- |
- |
+/- 8% SG |
+/- 8% SG |
| Smart Slope |
- |
- |
- |
YES |
YES |
| Rotation - RPS |
10 |
10 |
0, 2, 5, 10 |
10 |
10 |
| Scanning - degrees |
- |
- |
10, 45, 90 |
- |
- |
| Scan90 |
- |
- |
YES |
- |
- |
| Beam Down |
- |
- |
YES |
- |
- |
| Sleep Mode |
- |
- |
YES |
- |
- |
| Range (diameter) Basic |
1,650 feet |
2,000 feet |
1,650 feet |
2,000 feet |
2,000 feet |
| Range (diameter) RE140/160 |
3,600 feet |
| RF remote control (diameter) |
- |
- |
650 feet |
- |
- |
| Li-Ion battery (operation) |
40+ hours |
40+ hours |
40+ hours |
40+ hours |
40+ hours |
| Alkaline battery (operation) |
60+ hours |
60+ hours |
60+ hours |
60+ hours |
60+ hours |
| Working Temp Range |
-4 to +122° F |
-4 to +122° F |
-4 to +122° F |
-4 to +122° F |
-4 to +122° F |
| Storage Temp |
-40 to +152° F |
-40 to +152° F |
-40 to +152° F |
-40 to +152° F |
-40 to +152° F |
Seal (both incuding and
excluding battery pack) |
IP67 |
IP67 |
IP67 |
IP67 |
IP67 |
| Warranty |
3 years no cost (see PROTECT by Leica Geosystems policy for life time coverage |
| |
|
|
|
|
| Laser Receivers |
|
|
|
| Technical Data |
Rod Eye Basic |
Rod Eye 140 Classic |
Rod Eye 160 Digital |
| Model Number |
789922 |
789923 |
789924 |
| Working Diameter |
2,000 feet |
4,430 feet |
4,430 feet |
| Extended detection window |
1.4 inch |
5 inch |
5 inch |
| Numeric readout height |
- |
- |
3.5 inch |
| Detectible spectrum |
600 nm to 800 nm |
600 nm to 800 nm |
600 nm to 800 nm |
| Detectible Accuracies |
Rod Eye Basic |
Rod Eye 140 Classic |
Rod Eye 160 Digital |
| Very fine |
- |
- |
+/- 0.02 inch |
| Fine |
+/- 0.04 inch |
+/- 0.04 inch |
+/- 0.04 inch |
| Medium |
- |
+/- 0.08 inch |
+/- 0.08 inch |
| Course |
+/- 0.12 inch |
+/- 0.12 inch |
+/- 0.12 inch |
| Very Course |
- |
- |
+/- 0.20 inch |
Laser Orientation:
Horizontal
Application:
Exterior
Laser Color:
Red
Laser Range (diameter):
2,000 feet
Laser Accuracy:
3/32-inch
Grade Type / Range:
Manual Grade
Plumb Point:
No
Battery Type:
Alkaline
Receiver:
Rod Eye 140 Classic
Remote Control:
No
Mount:
No
