TOPCON RL-H5A - PS.D2 1090051-01
Self-Leveling Rotary Laser Level Rechargeable Batteries Package |
Includes: LS-110D Receiver and NiMH Rechargeable Batteries
>>> This Topcon 1090051-01 is a direct replacement for discontinued part number 1021200-08 <<<
|
| Next Generaton Self-Leveling Construction Laser |
 |
| The Topcon RL-H5A auto-leveling laser level combines precision, versatility and value in one job site tough package. Its super-fast self-leveling motors are accurate to +/-10 arc seconds meaning whether you're checking grade or setting batter boards you are going to be accurate the first time. Its high-power 2.4mW diode means you have a 2,600' diameter working range (with detector use) making it a great reference for machine mounted receivers. The 635nm visible beam means it can even be used for interior alignment applications from setting piers and decking, to wall and even cabinet alignment. All of these features makes the Topcon RL-H5A Laser more than twice the laser offered by anyone else. |
Topcon RL-H5A TOP FEATURES
- Self-Leveling Horizontal Beam
- Long Range Operation 2,600 ft diameter
- High Horizontal Accuracy 1/16-inch @ 100-feet
- Simple, intuitive manual slope capability
- Tough IP66 Rating - Dust and Water Rating
- Self-Leveling Range ± 5 degrees
- Long Rechargeable battery life - 60 hours
- Back-Up Alkaline battery life - 100 hours
- Out of Level Notification
|

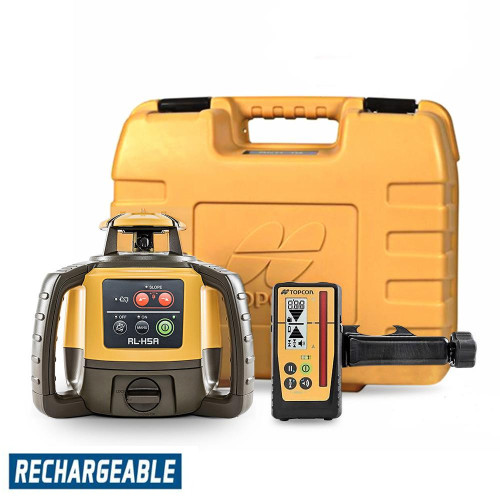

| Topcon RL-H5A (1090051-01) Laser Kit INCLUDES |
 |
- RL-H5A Horizontal Laser
- LS-110D Laser Receiver Sensor 1011989-01
- Receiver Rod Clamp Holder 100 (1011990-01)
- (4) D-Cell NiMH Rechargeable Batteries BT-79Q 1025029-01
- Rechargeable Battery Holder 1024993-01
- AC Adapter / Charger 1024944-02
- Rugged Hard Shell Carrying Case
- 5-Year Warranty Guarantee
|
|
|
MULTI-PURPOSE LASER
Grading, excavating and general construction projects are perfect applications for the RL-H5A. With the added "Slope Matching" feature, check grade on all your flat and slope work. The 600 rpm rotation speed makes the Topcon RL-H5A a great match with any machine mounted laser sensor.
EASY TO USE
With electronic self-leveling you press the power button and go right to work in seconds. If the TOPCON RL-H5A gets disturbed on the job it re-levels itself automatically. The Self-Leveling motors are accurate to ± 10 arc seconds.
LONG RANGE OPERATION
Need to shoot elevations up to 1,300 feet from your laser? No problem, this TOPCON RL-H5A has a workable power and range of 2,600 feet diameter on the jobsite.
ALL WEATHER DEPENDABILITY
With the IP66 rating, the TOPCON RL-H5A is JOBSITE TOUGH and can withstand dust, a sudden shower and even a torrential rainfall.
5-YEAR GUARANTEE
The TOPCON RL-H5A Laser comes with a FIVE YEAR GUARANTEE. Topcon is backing up this reliable, accurate laser with the best factory warranty in the industry.
|
|
|
| |
| Topcon RL-H5A Laser SPECIFICATIONS |
| Accuracy |
1/16-inch @ 100-feet |
| Self-Leveling Range |
± 5 degrees |
| Working Range diameter |
2,600 feet |
| Rotation Speed |
600 RPM |
| Light Source |
Visible Red Laser 635NM |
| Laser Class |
CDRH(FDA) IIIa JIS/IEC 3R |
| Dust / Water Rating |
IP66 |
| Operation Time |
Rechargeable : 60 hours
Alkaline: 100 hours |
| Operational Temp |
-4ºF to 122ºF |
| Size |
7.0 x 7.7 x 8.5 in |
| Maximum Power Output |
2.4mW |
| Tripod Screw Thread |
5/8-11 |
|
| |
| INCLUDED Topcon LS-110D Receiver Sensor OVERVIEW |
|

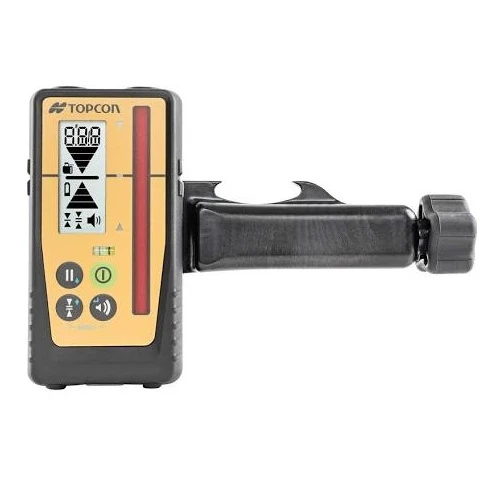

Meet the Topcon LS-110D — the deluxe laser receiver that takes digital grade reading to the next level. Built for speed, accuracy, and rugged site conditions, the LS-110D delivers reliable on-grade feedback with digital precision, front-and-back LCDs, and insane battery life — all wrapped in a compact, field-ready unit.
✅ 4-inch laser capture height — grab the beam faster and stay on grade
✅ Smart LCD screens front and back — because walking around is overrated
✅ Digital readout tells you how far off-grade you really are
✅ Includes screw-style Sensor Holder 110 — mounts tight, stays tight
✅ Works with Topcon lasers including RL-H5A, RL-SV2S, and RL-200 Series
✅ 45 hours of runtime on a single AA battery
|
|
|
| This RL-H5A Kit INCLUDES This TOPCON LS-110D Laser Receiver |
|
|
WHAT'S IN THE BOX...
- Topcon LS-110D Deluxe Laser Receiver
- Receiver Model Topcon 1026030-01 / Topcon 1011989-04
- Large 4-Inch Laser Capture Height
- Rubber Armor Protective Jacket
- Smart Digital Readout
- Adjustable Accuracy Settings
- Adjustable Volume Control
- 1-Year Warranty
- Sensor Holder 110 Rod Bracket (screw-style clamp for secure mounting)
- Rod Bracket Model Topcon 1019505-01
- Compatible with Topcon LS-110D laser receiver
- Secure clamp design for quick attachment to grade rods
- Durable construction for jobsite performance
- Adjustable grip for various rod sizes
- Quick-release mechanism for easy repositioning
- Built-in circular bubble vial helps keep rod vertical for accurate readings
|
|
| |
| If you need assistance or have questions regarding laser products, or applications give us a call at 1.877.866.5721 |
| |
|
| Topcon RL-H5A Laser Series COMPARISON |
| New Series |
RL-H5A RB |
RL-H5A DB |
RL-H5A RB |
RL-H5B DB |
LASER - TOP COMPONENT OVERVIEW
|
| New Model |
1021200-49 |
1021200-50 |
1090051-01 |
1021200-73 |
| Discontinued Model |
1021200-06
1021200-14 |
1021200-07 |
1021200-08 |
1021200-31
1021200-33 |
| Receiver |
LS-80X |
LS-80X |
LS-110D |
LS-80X |
| Batteries |
Rechargeable |
Dry / Alkaline |
Rechargeable |
Dry / Alkaline |
| Remote Control |
NO |
NO |
NO |
NO |
| Measuring Rod 15' |
NO |
NO |
NO |
NO |
| Aluminum Tripod |
NO |
NO |
NO |
NO |
| LASER SPECIFICATIONS |
| Source |
635nm Class 2 |
635nm Class 2 |
635 nm Class 2 |
635 nm Class 2 |
| Range (Diameter) |
2,600-feet |
2,600-feet |
2,600-feet |
1,300-feet |
Accuracy @ 100 feet
|
1/16-inch
|
1/16-inch |
1/16-inch |
1/8-inch |
| Rotation Speed |
600 RPM |
600 RPM |
600 RPM |
600 RPM |
| Slope |
Manual 1 Axis |
Manual 1 Axis |
Manual 1 Axis |
NO |
| Manual Slope Range |
± 5 degrees |
± 5 degrees |
± 5 degrees |
|
| Self-Leveling |
± 5 degrees |
± 5 degrees |
± 5 degrees |
± 5 degrees |
| Rechargeable Battery |
60 hours |
|
60 hours |
|
| Dry/Alkaline Battery |
100 hours |
100 hours |
100 hours |
100 hours |
| Battery Run Charge |
NO |
|
NO |
|
| Enviornment |
IP66 |
IP66 |
IP66 |
IP66 |
| Warranty |
5 YEARS |
5 YEARS |
5 YEARS |
5 YEARS |
| DISCONTINUED VERSION - OLD LASER INFORMATION |
| Old Series |
New |
RL-H5A DB
|
RL-4HC RB |
RL-H5B |
| Old Model |
New |
1021200-07 |
313980772 |
1021200-31 |
| |
* Under normal circumstances we stock this item and are able to ship orders placed before 12 NOON Central Standard Time. We also attempt to ship all orders that are placed before 5 P.M. Certain circumstances outside of our control can sometimes affect this standard that we set.
Laser Orientation:
Horizontal
Application:
Exterior
Laser Color:
Red
Laser Range (diameter):
2,600 feet
Laser Accuracy:
1/16-inch
Grade Type / Range:
Manual Grade
Battery Type:
Rechargeable
Receiver:
LS-110D (4-inch Capture Height)
Remote Control:
No
NOW ON SALE:
Lowest Price GUARANTEED!
kit-products:
Topcon RL-H5A-BL, Topcon LS-110D with Holder 110, Topcon BT-79Q / 1025029-01, Topcon 1024944-02 Battery Charger AD-17B, Topcon 1025614-01
