Topcon RL-H5A PS.DB Self-Leveling Laser Complete Kit with LS-110D Receiver, Inches Rod & Tripod

Product Description
Videos

TOPCON RL-H5A - PS.RB 1090051-01-K2
Self-Leveling Rotary Laser Level Rechargeable Batteries Package

Includes: LS-110D Deluxe Receiver, Measuring Rod Inches and Aluminum Tripod (Rechargeable Batteries)
>>> This Topcon 1090051-01 is a direct replacement for discontinued part number 1021200-08 <<<

Next Generaton Self-Leveling Construction Laser

The Topcon RL-H5A auto-leveling laser level combines precision, versatility and value in one job site tough package. Its super-fast self-leveling motors are accurate to +/-10 arc seconds meaning whether you're checking grade or setting batter boards you are going to be accurate the first time. Its high-power 2.4mW diode means you have a 2,600' diameter working range (with detector use) making it a great reference for machine mounted receivers. The 635nm visible beam means it can even be used for interior alignment applications from setting piers and decking, to wall and even cabinet alignment. All of these features makes the Topcon RL-H5A Laser more than twice the laser offered by anyone else.

Topcon RL-H5A TOP FEATURES

Self-Leveling Horizontal Beam
Long Range Operation 2,600 ft diameter
High Horizontal Accuracy 1/16-inch @ 100-feet
Simple, intuitive manual slope capability
Tough IP66 Rating - Dust and Water Rating
Self-Leveling Range ± 5 degrees
Long Rechargeable battery life - 60 hours
Back-Up Alkaline battery life - 100 hours
Out of Level Notification

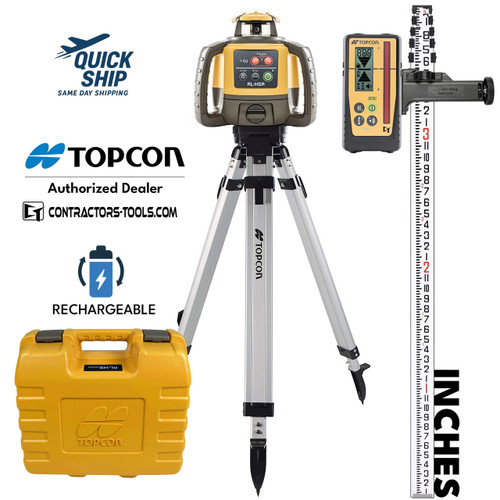

Topcon RL-H5A (1090051-01-K2) Laser Kit INCLUDES

RL-H5A Horizontal Laser
LS-110D Laser Receiver Sensor 1091205-01
Receiver Rod Clamp Holder 100 (1011990-01)
(4) D-Cell NiMH Rechargeable Batteries BT-79Q 1025029-01
Rechargeable Battery Holder 1024993-01
AC Adapter / Charger 1024944-02
Aluminum 16-Foot Grade Rod - Measurements in INCHES
Aluminum Heavy-Duty Tripod
Rugged Hard Shell Carrying Case
5-Year Warranty Guarantee

MULTI-PURPOSE LASER
Grading, excavating and general construction projects are perfect applications for the RL-H5A. With the added "Slope Matching" feature, check grade on all your flat and slope work. The 600 rpm rotation speed makes the Topcon RL-H5A a great match with any machine mounted laser sensor.

EASY TO USE
With electronic self-leveling you press the power button and go right to work in seconds. If the TOPCON RL-H5A gets disturbed on the job it re-levels itself automatically. The Self-Leveling motors are accurate to ± 10 arc seconds.

LONG RANGE OPERATION
Need to shoot elevations up to 1,300 feet from your laser? No problem, this TOPCON RL-H5A has a workable power and range of 2,600 feet diameter on the jobsite.

ALL WEATHER DEPENDABILITY
With the IP66 rating, the TOPCON RL-H5A is JOBSITE TOUGH and can withstand dust, a sudden shower and even a torrential rainfall.

5-YEAR GUARANTEE
The TOPCON RL-H5A Laser comes with a FIVE YEAR GUARANTEE. Topcon is backing up this reliable, accurate laser with the best factory warranty in the industry.

Topcon RL-H5A Laser SPECIFICATIONS
Accuracy	1/16-inch @ 100-feet
Self-Leveling Range	± 5 degrees
Working Range diameter	2,600 feet
Rotation Speed	600 RPM
Light Source	Visible Red Laser 635NM
Laser Class	CDRH(FDA) IIIa JIS/IEC 3R
Dust / Water Rating	IP66
Operation Time	Rechargeable : 60 hours Alkaline: 100 hours
Operational Temp	-4ºF to 122ºF
Size	7.0 x 7.7 x 8.5 in
Maximum Power Output	2.4mW
Tripod Screw Thread	5/8-11

INCLUDED Topcon LS-110D Receiver Sensor OVERVIEW

Meet the Topcon LS-110D — the deluxe laser receiver that takes digital grade reading to the next level. Built for speed, accuracy, and rugged site conditions, the LS-110D delivers reliable on-grade feedback with digital precision, front-and-back LCDs, and insane battery life — all wrapped in a compact, field-ready unit.

✅ 4-inch laser capture height — grab the beam faster and stay on grade
✅ Smart LCD screens front and back — because walking around is overrated
✅ Digital readout tells you how far off-grade you really are
✅ Includes screw-style Sensor Holder 110 — mounts tight, stays tight
✅ Works with Topcon lasers including RL-H5A, RL-SV2S, and RL-200 Series
✅ 45 hours of runtime on a single AA battery

This RL-H5A Kit INCLUDES This TOPCON LS-110D Laser Receiver

Topcon LS-110D

Topcon LS-110D Back

WHAT'S IN THE BOX...

Topcon LS-110D Deluxe Laser Receiver
- Receiver Model Topcon 1026030-01 / Topcon 1011989-04
- Large 4-Inch Laser Capture Height
- Rubber Armor Protective Jacket
- Smart Digital Readout
- Adjustable Accuracy Settings
- Adjustable Volume Control
- 1-Year Warranty

Sensor Holder 110 Rod Bracket (screw-style clamp for secure mounting)
- Rod Bracket Model Topcon 1019505-01
- Compatible with Topcon LS-110D laser receiver
- Secure clamp design for quick attachment to grade rods
- Durable construction for jobsite performance
- Adjustable grip for various rod sizes
- Quick-release mechanism for easy repositioning
- Built-in circular bubble vial helps keep rod vertical for accurate readings

△

SitePro ALQR20 Contractor Grade Aluminum Tripod — Included in This Kit — 1090051-01-K2

SitePro ALQR20 Aluminum Tripod Quick Clamp Black

SitePro ALQR20 Aluminum Heavy Duty Quick Release Tripod

Model: 01-ALQR20-B

Built for the demands of the jobsite, the SitePro ALQR20 delivers rugged stability and fast setup in one dependable package. Constructed from heavy-gauge square aluminum, this tripod features double-banded legs for enhanced strength and reduced flex — ideal for high-precision applications in tough conditions.

△ Built Like a Tank

•Heavy-gauge square aluminum construction
•Reinforced double-banded leg design — no flex, no sway
•Replaceable steel shoe points for solid traction

✓ Fast Setup, Every Time

•Quick-release clamps for fast, reliable adjustments
•Flat head with 5/8-11 thread — fits most construction lasers
•Extends to 64 inches for versatility on uneven terrain

✓ Weather and Jobsite Tough

•Powder-coated black hardware resists wear and corrosion
•Die-cast aluminum shoe castings — durable in all conditions
•Collapses to 40 inches for easy transport

✓ At a Glance

•Material: Heavy-Gauge Square Aluminum
•Extended: 64 in (163 cm) | Collapsed: 40 in (102 cm)
•Head: 5/8-11 Flat | Color: Black

Full Specifications

Material	Heavy-Gauge Square Aluminum
Extended Height	64 inches (163 cm)
Collapsed Height	40 inches (102 cm)
Clamping Style	Quick Clamp (Positive Locking)
Head Style	Flat, 5/8-11 Thread
Hardware	Powder-Coated Black
Shoe Points	Replaceable Steel
Included	Tripod + Heavy-Duty Poly-Webbing Shoulder Strap

Note on Included SitePro ALQR20 Tripod: This kit includes a contractor-grade tripod built for strength, stability, and long-term durability. Unlike many online kits that cut corners with low-cost tripods, we pair this precision laser with a tripod that matches its quality — fully backed by us.

▣

Aluminum 16-Foot Grade Rod — Inch Measurements — 11-816-C — Included in This Kit

SitePro 11-816-C 16-ft Aluminum Grade Rod Feet and Inches with LS-110D Receiver Mounted

SitePro 11-816-C 16-ft Aluminum Telescoping Leveling Rod (CR)
Feet & Inches Graduations

Model: 11-816-C

Engineered for performance and built to last, the SitePro 11-816-C is a professional-grade 16-ft aluminum leveling rod designed for ultra-precise elevation reading and rugged, day-in-day-out use on active jobsites.

△ Lightweight Yet Built Tough

•High-strength aluminum alloy — resists bending and denting
•Sections telescope smoothly — no rattling or binding

✓ Feet & Inches — Down to the Details

•Graduated in Feet, Inches & fractional sub-divisions
•Perfect for pad finishing, form setting, and slab layout

✓ Built for All Conditions

•Each section anodized for corrosion resistance
•High-visibility, weatherproof ink — won’t fade or scratch

✓ Rugged Jobsite-Ready Design

•Five-section telescoping with impact-resistant joints
•Collapses to 48 inches for easy transport

Full Specifications

Length (Extended)	16 ft
Length (Collapsed)	48 inches (4 ft)
Sections	5
Material	High-Strength Aluminum Alloy — Anodized
Graduation — Front	Feet, Inches & Fractional Sub-Divisions
Graduation — Back	Backside height measuring scale for eye-level reads
Locking Buttons	Heavy-Duty Polycarbonate
Included	Rod + Carrying Case with Shoulder Strap

Graduation Note: Graduated in Feet & Inches — the standard for contractors who work in fractional inches. Pairs directly with the RL-H5A and LS-110D receiver for accurate grade reads in the field.

If you need assistance or have questions regarding laser products, or applications give us a call at 1.877.866.5721

TOPCON LASER PACKAGE - Kit Component Comparison

Models Current	Laser	Receiver	Powerd by:	Rod	Tripod	COO	NOTES
1090051-01	RL-H5A	LS-110D	(R)			JPN
1090051-01-K1	RL-H5A	LS-110D	(R)	Feet/10ths	HD Tripod	JPN
1090051-01-K2	RL-H5A	LS-110D	(R)	Feet/Inchs	HD Tripod	JPN
1021200-17	RL-H5A	LS-110D	(ALK)			JPN
1021200-17-K1	RL-H5A	LS-110D	(ALK)	Feet/10ths	HD Tripod	JPN
1021200-17-K2	RL-H5A	LS-110D	(ALK)	Feet/Inchs	HD Tripod	JPN
1021200-49	RL-H5A	LS-80X	(R)			JPN
1021200-49-K1	RL-H5A	LS-80X	(R)	Feet/10ths	HD Tripod	JPN
1021200-49-K2	RL-H5A	LS-80X	(R)	Feet/Inchs	HD Tripod	JPN
1021200-50-BCA	RL-H5A	LS-80X	(ALK)				NO CASE
1021200-50-BL	RL-H5A		(ALK)			JPN	LASER ONLY
1021200-50	RL-H5A	LS-80X	(ALK)			JPN
1021200-50-K1	RL-H5A	LS-80X	(ALK)	Feet/10ths	HD Tripod	JPN
1021200-50-K2	RL-H5A	LS-80X	(ALK)	Feet/Inchs	HD Tripod	JPN
1035258-01	RL-H5A	LS-80X	(ALK)	Feet/10ths		JPN	AKA 1021200-50-K1
1035259-01	RL-H5A	LS-80X	(ALK)	Feet/Inchs		JPN	AKA 12021200-50-K2
1035260-01	RL-H5A	LS-80X	(R)	Feet/10ths		JPN	AKA 1021200-49-K1
1035261-01	RL-H5A	LS-80X	(R)	Feet/Inchs		JPN	AKA 1021200-49-K2
Models Obsolete -DISCONTINUED - Direct Substitution - Last Collumn
Models	Laser	Receiver	Powerd by:	Rod	Tripod	COO	NOTES
1021200-06	RL-H5A	LS-80L	(R)			CHN	DR 1021200-49
1021200-06-K1	RL-H5A	LS-80L	(R)	Feet/10ths	HD Tripod	CHN	DR 1021200-49-K1
1021200-06-K2	RL-H5A	LS-80L	(R)	Feet/Inchs	HD Tripod	CHN	DR 1021200-49-K2
1021200-07	RL-H5A	LS-80L	(ALK)			CHN	DR 1021200-50
1021200-08	RL-H5A	LS-110D	(R)			CHN	DR 1090051-01
1021200-14	RL-H5A	LS-80L	(R)			CHN	DR 1021200-49
1021200-15	RL-H5A	LS-80L	(ALK)			CHN	DR 1021200-50
1021200-15-K1	RL-H5A	LS-80L	(ALK)	Feet/10ths	HD Tripod	CHN	DR 1021200-50-K1
1021200-15-K2	RL-H5A	LS-80L	(ALK)	Feet/Inchs	HD Tripod	CHN	DR 1021200-50-K2
313980752	RL-H4C	LS-80L	(ALK)			CHN	DR 1021200-50
313980782-1	RL-H4C	LS-80L	(ALK)	Feet/10ths	HD Tripod	CHN	DR 1021200-50-K1
313980752-2	RL-H4C	LS-80L	(ALK)	Feet/Inchs	HD Tripod	CHN	DR 1021200-50-K2
313980772	RL-H4C	LS-110D	(R)			CHN	DR 1090051-01
							DR = Direct Replacement
			(R) / (ALK)	Rechargeable / Alkaline		CHN / JPN	Made in China / Japan


Topcon RL-H5A Laser Series COMPARISON
New Series	RL-H5A RB	RL-H5A DB	RL-H5A RB	RL-H5B DB
LASER - TOP COMPONENT OVERVIEW
New Model	1021200-49	1021200-50	1090051-01	1021200-73
Discontinued Model	1021200-06 1021200-14	1021200-07	1021200-08	1021200-31 1021200-33
Receiver	LS-80X	LS-80X	LS-110D	LS-80X
Batteries	Rechargeable	Dry / Alkaline	Rechargeable	Dry / Alkaline
Remote Control	NO	NO	NO	NO
Measuring Rod 15'	NO	NO	NO	NO
Aluminum Tripod	NO	NO	NO	NO
LASER SPECIFICATIONS
Source	635nm Class 2	635nm Class 2	635 nm Class 2	635 nm Class 2
Range (Diameter)	2,600-feet	2,600-feet	2,600-feet	1,300-feet
Accuracy @ 100 feet	1/16-inch	1/16-inch	1/16-inch	1/8-inch
Rotation Speed	600 RPM	600 RPM	600 RPM	600 RPM
Slope	Manual 1 Axis	Manual 1 Axis	Manual 1 Axis	NO
Manual Slope Range	± 5 degrees	± 5 degrees	± 5 degrees
Self-Leveling	± 5 degrees	± 5 degrees	± 5 degrees	± 5 degrees
Rechargeable Battery	60 hours		60 hours
Dry/Alkaline Battery	100 hours	100 hours	100 hours	100 hours
Battery Run Charge	NO		NO
Enviornment	IP66	IP66	IP66	IP66
Warranty	5 YEARS	5 YEARS	5 YEARS	5 YEARS
DISCONTINUED VERSION - OLD LASER INFORMATION
Old Series	New	RL-H5A DB	RL-4HC RB	RL-H5B
Old Model	New	1021200-07	313980772	1021200-31

* Under normal circumstances we stock this item and are able to ship orders placed before 12 NOON Central Standard Time. We also attempt to ship all orders that are placed before 5 P.M. Certain circumstances outside of our control can sometimes affect this standard that we set.

Laser Orientation:

Horizontal

Application:

Exterior

Laser Color:

Red

Laser Range (diameter):

2,600 feet

Laser Accuracy:

1/16-inch

Grade Type / Range:

Manual Grade

Battery Type:

Rechargeable

Receiver:

LS-110D (4-inch Capture Height)

Remote Control:

Tripod:

Heavy Duty Standard

Measuring Rod:

15' Inches
