Spectra Precision
Self-Leveling Rotary Laser
Self-Leveling Rotary Laser
LL1505C-21

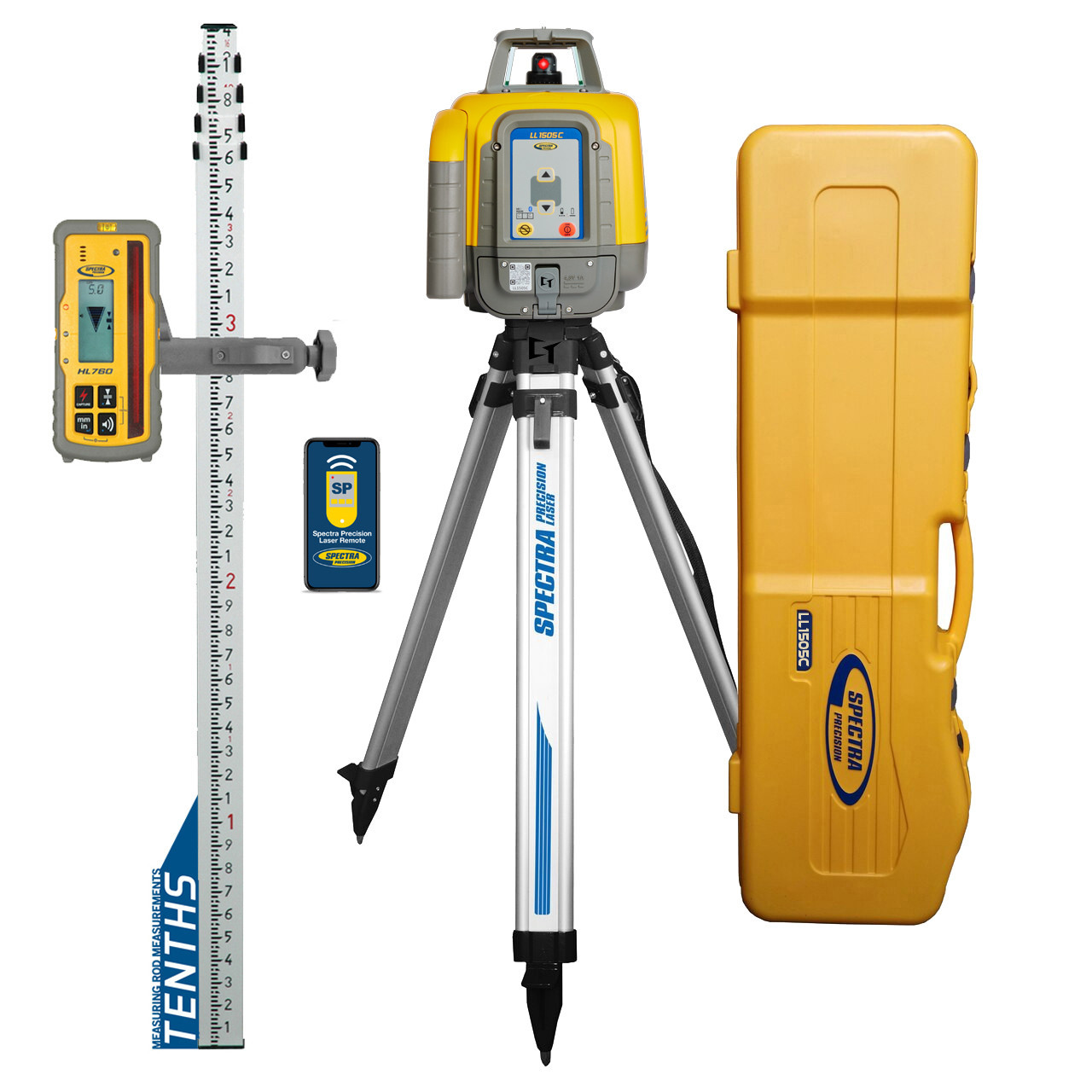

The Complete Kit — Laser, Rod, Tripod, One Case
Everything for the job in one box: the LL1505C self-leveling laser, the
HL760 digital readout receiver with its C70 clamp, the B10 rechargeable
pack and CH10 charger, a 15 ft GR151 rod in tenths of a foot, the
Q104025 tripod — and the 128995-00 Large System Case that every one of
them fits inside. Accurate to 1/16″ at 100 ft across a 4,000 ft working diameter,
with Bluetooth so your phone sets the slope.
Questions? Talk to someone who uses these: 1-877-866-5721
±1/16″
At 100 ft
4,000 ft
With the HL760
IP66
Dust & jet rated
55 hrs
NiMH runtime
300/600/900
Rotation rpm
±5°
Self-leveling
5 years
Warranty
One case
Rod + tripod fit
Pour concrete with confidence
Forms, footings and screed line all off one plane. Set it in the morning and it holds all day.
Get the grade right the first time
Cut and fill read straight off the rod, so nothing gets set on somebody’s guess.
Move dirt with fewer grade checks
A 4,000 ft working diameter — check from where you are standing instead of walking back to the hub.
The pairing
The laser makes the plane. The HL760 reads it.

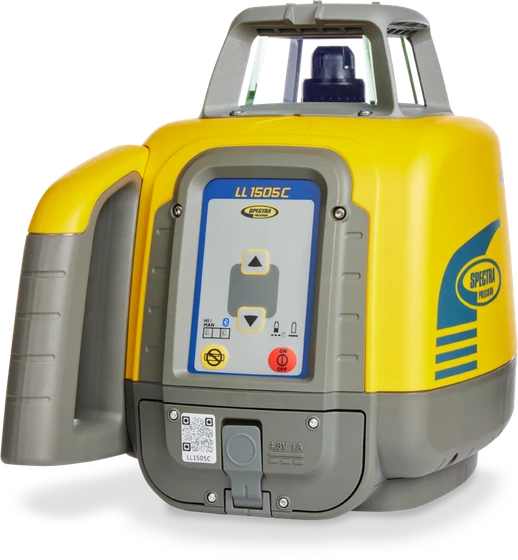

LL1505C
It puts the plane up.
- Self-levels every time it powers on, so you can never arrive on site working off yesterday’s slope by accident.
- 1/16″ at 100 ft. 300 / 600 / 900 rpm, and a ±5° self-leveling range.
- Manual slope on X and Y, with the direction of each axis cast into the housing.
- Bluetooth is built in. Your own phone sets the slope — there is no remote you have to buy first.
- A 3 ft drop onto concrete and a 5 ft tripod tip-over, sealed to IP66.

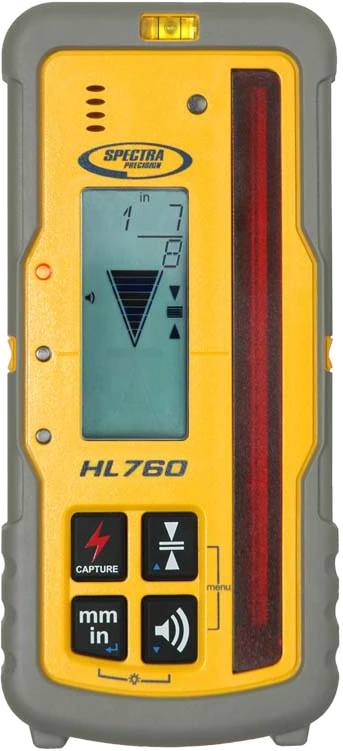

HL760
It tells you the number.
- A 5″ detection window with 4″ of numeric readout — the receiver hands you a measurement, not a beep you have to interpret.
- Displays in mm, cm, inches or fractional inches.
- Five working accuracy settings, Ultra Fine at about 1/32″ down to Coarse at about 1/2″: fine grade and rough dirt off the same receiver.
- Ships with its C70 clamp, so it goes straight on the rod.
- Two-way radio back to the laser. The receiver does not just listen for the beam — it talks to the laser, which is what makes PlaneMatch possible.
What the two of them do that neither does alone
Both of the headline numbers on this page are pair numbers. The 4,000 ft working diameter is what the LL1505C reaches with the HL760 on the rod — put a simpler receiver up there and the circle closes in on you. And PlaneMatch only exists because the two talk over radio: you set the receiver on one elevation, then on a second, and the laser works out the fall between them and holds it across ground nobody has measured. No calculation, no trigonometry, no second trip.
That pairing is already done for you in the LL1505C-11 — laser, receiver and C70 clamp come out of the same case.
That pairing is already done for you in the LL1505C-11 — laser, receiver and C70 clamp come out of the same case.
What you get
The whole job in one case
Laser and receiver
The LL1505C self-leveling laser and the HL760 digital readout receiver with its C70 clamp — the receiver that gives you the number, not just a beep.
Rod, tripod, power
A 15 ft GR151 rod in tenths of a foot, the Q104025 tripod, the B10 rechargeable pack and the CH10 charger. Nothing left to order.
The 128995-00 large case
Every piece of it travels inside one case — rod and tripod included. That is what the All in One case is built to do.
One box off the truck and you are working.
The technical edge
288 acres from one setup
Reach
A 4,000 ft working diameter with the HL760 — a circle three quarters of a mile across. Set it once and cover ground that would otherwise cost you three or four moves.
Precision
1/16″ at 100 ft from the laser, and the HL760 reads down to 1/32″ on its finest setting. Tight enough for forms, footers and finish concrete.
Speed
300 / 600 / 900 rpm. The beam only tells a receiver where it is when it sweeps past — 15 times a second at 900 rpm instead of 5 at 300. On a moving machine that is the difference between holding grade and chasing it.
Most lasers make you choose between reach and precision. This one does not.
What sets it apart
Two ways to control your laser
1 · Your phone — free
Bluetooth is built in. The Laser Remote App sets slope, runs PlaneMatch, changes rotation speed and reaches nearly every setting in the laser. Nothing extra to buy.
2 · The RC1402 remote
Buttons in your hand and 330 ft of radio that behaves the same every day. It is also the only way to reach radio channel and language — and the one that still works when the phone is flat, gloved-out or back in the truck.
Most crews end up using both. Your choice, not ours.
Free Same-Day Shipping · Order by noon central and it ships today.
Call 1-877-866-5721 for express and next-day options. · Five year laser warranty
Call 1-877-866-5721 for express and next-day options. · Five year laser warranty

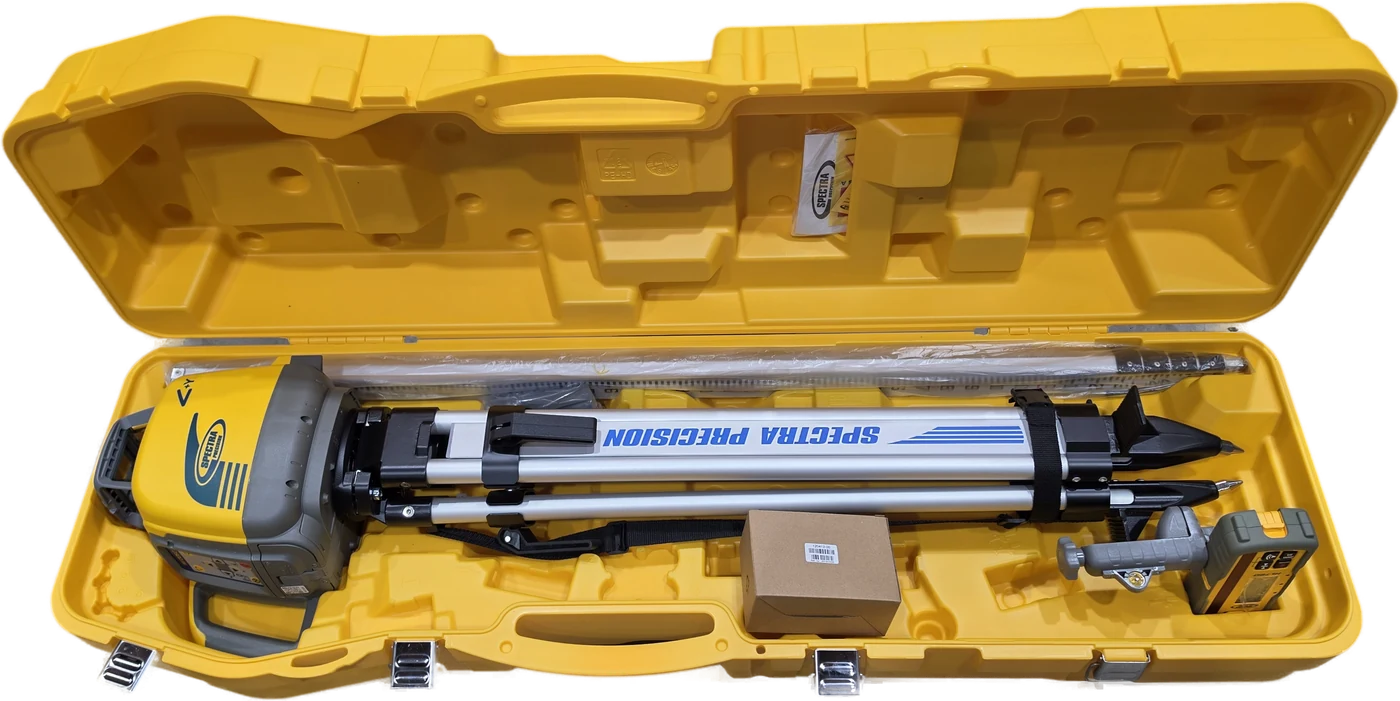

The 128995-00 large system case. Laser, HL760, GR151 rod and the Q104025 tripod all travel in this one case — the rod and the tripod are what the small and medium cases will not take.
Overview
One Laser. Two Ways to Run It.
The LL1505C is a self-leveling horizontal laser with manual slope, built for general and concrete construction. Spectra call it the most rugged laser level they make: it survives a 1 m (3 ft) drop onto concrete and a tripod tip-over from 1.5 m (5 ft), and it is sealed to IP66 against dust and jetted water.
Two things separate it from a basic rotary laser. It is more accurate and reaches further — 1/16 inch at 100 feet across a 4,000 ft working diameter with the HL760 receiver. And it has Bluetooth built in, so the Spectra Precision Laser Remote App on your own phone sets the slope and drives the laser. Spectra's own words: it "eliminates the extra cost of the remote control."
Paired with the HL760 in this kit you also get PlaneMatch, which matches the fall between two points over ground whose grade you do not know — no calculation, no trigonometry, no second trip.
What’s in the Box
What You Receive.
LL1505C Laser
Self-leveling rotary laser with manual slope and Bluetooth. 1/16 in at 100 ft, 300/600/900 rpm, IP66, five year warranty.
HL760 Digital Readout Receiver
The advanced receiver: 5 in detection window, 4 in numeric readout, five accuracy settings and the two-way radio that makes PlaneMatch work.
C70 Rod Clamp
The heavy-duty clamp that comes with the HL760, with a bubble vial built in.
B10 Rechargeable Pack
10,000 mAh NiMH. Up to 55 hours a charge. Sealed and keyed so it cannot go in the wrong way round.
CH10 Worldwide Charger
Charges the pack inside the laser through the charger jack, or outside it if you run a spare. Under ten hours.
GR151 Grade Rod — TENTHS
15 ft aluminum rod graduated in tenths of a foot. One of only four rods that fit inside the large case.
Q104025 Aluminum Tripod
Medium duty, quick clamps. The only tripod that fits inside the large case — and it is already in this kit.
128995-00 Large System Case
The All in One case: laser, receiver, rod and tripod all travel in one box — no second bag, nothing left on the truck.
Laser Remote App
iOS and Android, free. Bluetooth control of slope, PlaneMatch and the laser functions from your own phone.
Quick Guide, Safety Instructions and 5-Year Warranty
Multi-language documentation in the box. The laser carries Spectra’s five year no-cost warranty — if it fails inside five years it is repaired free, parts and labor.
Why this kit and not a cheaper one
The rod and the tripod go inside the case.
One box off the truck and you are working — laser, receiver, 15 ft rod and tripod all travel inside the 128995-00 case. That is not true of most kits, and it is not true of most tripods: the Q104025 in this kit is the only tripod that fits inside it. Wood, elevating and heavy-duty tripods will not go in, whatever the badge.
An all-in-one case like this is rare, and it is the reason this kit travels the way it does. If you ever replace the rod, it has to be one of four that fit — GR151 or GR152, or the SitePRO 11-815-T or 11-815-C. Anything else and it stops traveling in the case. Buy the kit and you already have the right ones.
An all-in-one case like this is rare, and it is the reason this kit travels the way it does. If you ever replace the rod, it has to be one of four that fit — GR151 or GR152, or the SitePRO 11-815-T or 11-815-C. Anything else and it stops traveling in the case. Buy the kit and you already have the right ones.
This kit reads in TENTHS of a foot. Need feet and inches instead?
The LL1505C-21 is the identical kit — same LL1505C laser, same HL760 receiver and C70 clamp, same B10 pack and CH10 charger, same Q104025 tripod, same 128995-00 large system case — with the GR152 inches rod in place of the GR151. If your plans and your crew work in feet and inches — most residential and flatwork does — that is the one you want. Ordering the wrong scale is the most common reason one of these comes back.
$1,576.00
See the LL1505C-21 →Applications
Where This Laser Earns Its Keep.
Site Grading & Excavation
Cut and fill, building pads, sub-base and sub-grade elevations
Drainage & Pipe Laying
Storm drains, septic fields, footers and trench depth
Forms & Footers
Leveling and aligning forms and footers to a single reference
Driveways & Ramps
Basic slopes — the single axis slope mode is built for exactly this
Estimating Cut and Fill
Read the number off the rod and work the quantity before you move dirt
Concrete & Slab Work
General elevation control across small to medium job sites
Applications as Spectra list them on the LL1505C datasheet.
VIDEO
See It On the Job.
Spectra’s own field footage. Pick one and it plays here.
PlaneMatch works the fall out for you. Set the receiver on your first elevation, then the second, and the laser matches the grade between them over ground you never measured. Needs an HL760 or a CR700, because the two talk over radio.
SLOPE
Slope, Three Ways — and Only One Needs the Remote.
The LL300N does manual slope. The LL1505C does manual slope, single-axis slope with the other axis still self-leveling, and PlaneMatch, which works the grade out for you. They are three different jobs and they are worth keeping straight.
✚︎
Manual Mode — both axes
Press the manual button once. Self-leveling stops and the arrow keys tilt both axes. For matching an existing non-level surface, a reference hub, or an elevation that was never level to begin with. The MAN indicator flashes red once a second so the laser can never be mistaken for a self-leveling one.
PRESS MANUAL ×1◢︎
Single Axis Slope — the ramp mode
Press the manual button twice. The Y axis goes to manual and the X axis keeps self-leveling — so your fall runs true down the drive while the laser still holds itself level across it. Red and green flash together, once a second. This is done at the laser. No remote, no phone.
PRESS MANUAL ×2⇄︎
PlaneMatch — it works the grade out
You do not calculate the fall. Set the receiver on the first point, then the second, and the laser matches the existing grade between them over ground you have not measured. Spectra’s own words: it “eliminates the need for complex calculations and will avoid errors.” Needs an HL760 or CR700 receiver, driven from the free app or the RC1402.
APP OR RC1402 + HL760/CR700The number almost nobody lists
Slope range: ±9% (5°)
Spectra print this figure in exactly one place — the User Guide troubleshooting table, under error 130, “Check if the receiver was set out of the slope range (+/- 9%, 5°).” It is not on the datasheet and not on Spectra’s website, which is why you will struggle to find it anywhere else. It is the same envelope the compensator uses to self-level (±5°, ±8.7% on the datasheet), but Spectra state it separately for slope, so we list it separately.
THE RECEIVER
The HL760 Gives You the Number.
Every receiver tells you which way to move. This one tells you how far. Instead of sliding it up and down the rod hunting for on-grade, the HL760 shows the distance off grade as a number — in millimeters, inches, fractional inches or feet, whichever you actually work in.
That is the whole difference, and it changes how one person works. Cut and fill becomes a reading rather than a hunt. One man checks elevations that used to need two.
Two more things earn their keep every day. The 5 inch reception height means you find the beam fast coming up the rod — the widest window of any receiver in this range. And there is an LCD on the front and the back, so you read it from wherever you are standing instead of walking round the rod.
The radio is the part that matters on this laser. It is how the HL760 and the LL1505C talk to each other, and it is what makes PlaneMatch possible: you set the receiver where you want the plane to land and the laser hunts until it finds it. An HR320 or an HL450 has no radio, so it cannot answer the laser and cannot do it.
| HL760 | Included in this kit |
| Reception height | 5 in. (127 mm) — the window over which it sees the beam at all |
| Numeric readout height | 4 in. (102 mm) |
| Accuracy settings | 5 working levels — Ultra Fine ~1/32 in, Super Fine ~1/16, Fine ~1/8, Medium ~1/4, Coarse ~1/2 — plus a separate calibration mode at ~1/64 in |
| Display units | mm, cm, inches, fractional inches and feet |
| Displays | Front and rear LCD, plus a 21-position proportional arrow |
| Reception angle | ± 45° minimum |
| Radio to the laser | Up to 330 ft (100 m) — this is what unlocks PlaneMatch |
| Receiver-to-receiver | Up to 260 ft (80 m), even out of sight of each other |
| Beeper | 110 dBA loud, 95 medium, 65 low, or off |
| Power | 2 × AA (included). 60+ hours continuous. Auto shut-off 20 min / 24 hr |
| Environmental | IP67 waterproof and dustproof |
| Drop rating | 10 ft (3 m) onto concrete |
| Clamp | C70 rod clamp included, with bubble vial |
| Smart Capture | Locks on to the beam and shows how far off grade you are without moving the receiver — built for deep excavation |
| Warranty | 3 years — Spectra’s “No Excuses” cover |
Working radius is laser dependent: 3 ft to 1,500 ft with the receiver, and a 4,000 ft working diameter when it is paired with the LL1505C.
✓ HL760 receiver and C70 clamp are included in this kit
Hover any photo to enlarge it.
It is not locked to this laser, or to this brand
It reads any red beam rotary laser you own.
The HL760 is a red beam receiver, and that is all it needs to be. Put it in front of any red beam rotary laser and it reads the beam — Topcon, Hilti, Leica, Johnson, David White, whatever badge is on the case. If you already run a rotary laser, this receiver works on it today.
What the list below changes is the radio. These are the Spectra transmitters the HL760, HL760U and CR700 can talk to, which is what turns on PlaneMatch, the in-cab remote display and the rest of the two-way features:LL1505C · HV1305C · LL300S · LL400HV · HV302 · GL412N / GL422N · GL612N / GL622N · UL633N
Off that list it still works — you simply read grade the ordinary way instead of the laser and the receiver talking to each other. So the money goes in once.
Off that list it still works — you simply read grade the ordinary way instead of the laser and the receiver talking to each other. So the money goes in once.
Range and accuracy, together
From a single footing to a subdivision — without moving the tripod.
Paired with the HL760, the LL1505C works across a 4,000 ft diameter. That is a circle three quarters of a mile across — roughly 288 acres from one setup. Set it once in the morning and it covers ground that would otherwise cost you three or four moves.
And it does that without giving up precision: 1/16 inch at 100 feet from the laser, with the HL760 reading down to 1/32 inch on its finest setting. Tight enough for forms, footers and finish concrete.
That combination is the whole point. Lasers built for distance usually trade away accuracy. Lasers built for accuracy usually keep you moving the tripod. This one does not ask you to pick — the same instrument shoots a garage pad in the morning and a pipe run across the site after lunch.
Why fewer setups means fewer mistakes
Every time you move the laser you re-establish your height of instrument, and every one of those is a chance to be a fraction out. Cover more ground from one position and you carry one benchmark across the whole job instead of four.
Accurate the first time is cheaper than accurate the second time. Concrete does not get poured twice.
Accurate the first time is cheaper than accurate the second time. Concrete does not get poured twice.
IN THE MANUAL
Six Things in the Owner’s Manual Most Sellers Never Mention.
None of these are on the datasheet. All of them are in the book that comes in the case, and every one of them is a reason this laser is easier to live with than the spec sheet suggests.
◧︎
Mask Mode — shut off part of the beam
Electronically kills the beam in one, two or three of the four quarters. Two uses: you stop blinding the crew working off their own laser next door, and you stop your own beam bouncing off glass or glossy metal back into your receiver as a false reading.
ARROW THEN MANUAL⏸︎
Standby — a proper lunch break
Beam off and leveling stopped to save the pack, but the HI alert keeps watching and your setup is preserved. It cancels itself if the laser gets re-oriented, so it can never quietly hide a knock while you are away.
HOLD MANUAL 3 SEC☰︎
Sensitivity — three levels
This does not change how accurately it levels. It changes how much wind and machine vibration the laser tolerates before it cries HI. Set it low-sensitivity beside a running dozer and it stops nuisance alarms without giving up a thing on accuracy. And the naming misleads: Low sensitivity is not less accurate — it is the setting that keeps the HI alert usable in wind.
APP OR RC1402◉︎
Six radio channels
Channels 0 to 5. If you are on a site with several lasers running, or somewhere with enough radio traffic to upset a link, you move channel instead of fighting it.
RC1402 SETTINGS⚠︎
HI / shock alert
Rotation stops, the beam goes off, you get an audible warning, the LED flashes every 4 seconds and the remote shows HI. It is the difference between finding out now and finding out after you have poured.
ALWAYS ARMED WHEN LEVELℹ︎
The Info screen
Hold E on the RC1402 and the laser reports model, battery, internal temperature, three firmware revisions, internal serial number and total runtime hours. Worth knowing before a warranty or service conversation. The free app shows all of it too — and runtime hours are worth asking for before you buy a used laser, because it is the one number that cannot be polished.
APP OR RC1402Worth Knowing
Before It Comes Out of the Case.
Worth knowing before it comes out of the case
It always wakes up level
Whatever you left it in last night, the LL1505C
powers on in automatic self-leveling every time. You cannot arrive on site working off yesterday’s
slope by accident — and masking clears at power-on too.
It works stood on its side
The mount is 5/8 × 11 both ways up, so the
same laser does plumb, walls and layout. Stood vertical it runs in manual — it cannot self-level on
its side — so the arrow keys drive it directly: up and down sets the vertical slope, left and right
walks the line sideways across the wall.
The casting shows you which way each axis runs
There are slope indication marks moulded into the
housing marking positive Y and positive X. They tell you the direction a Y adjustment will
tilt the beam, and the same for X — so you can line the laser up with your fall
before you touch a button, instead of finding out you have sloped across the drive rather than
along it.
SPECIFICATIONS
Every Number, From Spectra’s Own Documents.
Taken from the LL1505C datasheet and the LL1505C User Guide. Where a figure appears in only one of them, we say so rather than round it off.
| ►︎ ACCURACY & RANGE | |
| Accuracy | ±1.5 mm / 30 m — 1/16 inch at 100 ft — 10 arc seconds |
| Operational diameter | 4,000 ft (1,200 m) with the HL760 — 2,600 ft with an HL450 |
| Self-leveling range | ±5° (±8.7%) |
| Slope range | ±9% (5°) — single axis or manual |
| Rotation speed | 300 / 600 / 900 rpm, selectable — set from the RC1402 |
| Laser | 630–643 nm, Class 2 |
| ►︎ CONTROL | |
| Bluetooth | Built in — free Spectra Precision Laser Remote App, iOS and Android |
| Radio range | Up to 100 m (330 ft) — this is the RC1402 / HL760 radio, not Bluetooth |
| PlaneMatch distance | Typically 80 m (260 ft) — needs an HL760 or CR700 |
| Radio channels | Six (0–5) |
| ►︎ POWER | |
| Power source | B10 10,000 mAh NiMH pack (included) or 4 × D-cell alkaline |
| Battery life | Up to 55 hours NiMH — or 60 hours on alkaline |
| Charge time | Under 10 hours — charges inside or outside the laser |
| Charger | CH10 worldwide charger (included) |
| ►︎ BUILT TO BE DROPPED | |
| Drop rating | 1 m (3 ft) onto concrete |
| Tripod tip-over | 1.5 m (5 ft) |
| Environmental rating | IP66 — dust tight, protected against jetted water |
| Operating temperature | -4°F to 122°F |
| Storage temperature | -13°F to 158°F |
| Out-of-level warning | Rotor stops and the red HI/MAN LED flashes |
| ►︎ PHYSICAL | |
| Weight | 7.7 lb (3.49 kg) including the battery |
| Dimensions | 10.7 × 7.7 × 7.9 in |
| Mount | 5/8 × 11 horizontally and vertically |
| Warranty | 5 years — no cost, parts and labor |
The slope range figure is published only in the User Guide troubleshooting table (error 130). It is not on the datasheet.
Compare the Series
Which LL1505C Do You Need?
Every LL1505C package we build, in one place. They all use the same laser — what changes is the receiver, whether a rod and tripod come with it, and which case it lives in. Find the row that matches how you work.
| Kit | Receiver | Rod | Also includes | Price |
►︎ LARGE “ALL IN ONE” SYSTEM CASE | ||||
READS IN TENTHS OF A FOOT | ||||
| LL1505C-1 | HL450 BETTER | TENTHS GR151 | RECHARGEABLETRIPODSYSTEM CASE | $1,212.80 |
| LL1505C-17 | HL760 BEST | TENTHS GR151 | RECHARGEABLETRIPODSYSTEM CASE | $1,350.00 |
| LL1505C-11 YOU ARE HERE | HL760 BEST | TENTHS GR151 | RECHARGEABLETRIPODSYSTEM CASE | $1,576.00 |
| LL1505C-16 | CR700 BEST | TENTHS GR151 | RECHARGEABLETRIPODSYSTEM CASE | $1,545.00 |
READS IN INCHES | ||||
| LL1505C-2 | HL450 BETTER | INCHES GR152 | RECHARGEABLETRIPODSYSTEM CASE | $1,212.80 |
| LL1505C-27 | HL760 BEST | INCHES GR152 | RECHARGEABLETRIPODSYSTEM CASE | $1,350.00 |
| LL1505C-26 | CR700 BEST | INCHES GR152 | RECHARGEABLETRIPODSYSTEM CASE | $1,545.00 |
| LL1505C-21 | HL760 BEST | INCHES GR152 | RECHARGEABLETRIPODSYSTEM CASE | $1,576.00 |
►︎ SMALL CASE | ||||
READS IN TENTHS OF A FOOT | ||||
| LL1505C-81 | HR320 GOOD | TENTHS 11-815T | 4D ALKALINEHD TRIPODSMALL CASE | $1,125.00 |
| LL1505C-X1 | HL450 BETTER | TENTHS 11-815T | RECHARGEABLEHD TRIPODSMALL CASE | $1,265.00 |
| LL1505C-19S | HL760 BEST | TENTHS 11-815T | RECHARGEABLEHD TRIPODSMALL CASE | $1,350.00 |
| LL1505C-18S | CR700 BEST | TENTHS 11-815T | RECHARGEABLEHD TRIPODSMALL CASE | $1,545.00 |
READS IN INCHES | ||||
| LL1505C-82 | HR320 GOOD | INCHES 11-815C | 4D ALKALINEHD TRIPODSMALL CASE | $1,125.00 |
| LL1505C-X2 | HL450 BETTER | INCHES 11-815C | RECHARGEABLEHD TRIPODSMALL CASE | $1,265.00 |
| LL1505C-29S | HL760 BEST | INCHES 11-815C | RECHARGEABLEHD TRIPODSMALL CASE | $1,350.00 |
| LL1505C-28S | CR700 BEST | INCHES 11-815C | RECHARGEABLEHD TRIPODSMALL CASE | $1,545.00 |
►︎ KITS WITH NO ROD AND TRIPOD | ||||
| LL1505C-BL | no receiver | — | BROWN BOXED — NO CASENO BATTERIESNO CHARGER | $625.00 |
| LL1505C-8 | HR320 GOOD | — | 4D ALKALINESMALL CASE | $795.00 |
| LL1505C-BCC | no receiver | — | RECHARGEABLECHARGERSMALL CASE | $872.00 |
| LL1505C-4 | HL450 BETTER | — | RECHARGEABLESMALL CASE | $1,102.40 |
| LL1505C | HL760 BEST | — | RECHARGEABLESMALL CASE | $1,166.40 |
| LL1505C-14 | CR700 BEST | — | RECHARGEABLESMALL CASE | $1,395.00 |
Prices are live from each product page. TENTHS reads in tenths of a foot; INCHES reads in feet and inches. Receiver tiers: HR320 good, HL450 better, CR700 and HL760 best — the HL760 and CR700 are the two that unlock PlaneMatch.
Read This First
Two Things Worth Knowing.
Two ways to control it — and one limit on both.
The free Laser Remote App runs this laser over Bluetooth — slope, PlaneMatch, rotation speed, sensitivity, the HI alert, even field calibration. We connected a phone and checked every screen. Two things it cannot reach: radio channel and language. Those are RC1402 only — and so is a radio that reaches 330 ft and behaves the same every day, where Spectra put the app at 150 ft for setting slope — a good day, not a guarantee, because Bluetooth moves with the weather, whatever is in the way, and the handset in your hand.
Connecting has one trick worth knowing before you are standing in a field wondering why it will not pair: the laser only listens for a phone during the first 30 seconds after power-on. Miss that window and you cycle the power — nothing is broken. First run also wants the license accepted and GPS switched on at the phone. Once it is talking, the status light on the laser turns blue.
Manual slope, not automatic grade entry.
You tilt the beam and verify it on the rod — there is no field
to type "1.5%" into. The app will show you a slope percentage on its first screen and it will not
let you set one: tap it and the laser answers "This functionality is not supported by the
Laser." That readout is there because one app runs Spectra's whole range.
What you do instead: Single Axis Slope, on the laser itself — press the manual button
twice and the Y axis tilts while X keeps self-leveling. If you need to dial an exact
percentage and have the laser hold it, you want an automatic slope laser. Call
1-877-866-5721 and we will point you at the right one rather than let you buy twice.
BLUETOOTH CONTROL
You Cannot Type a Grade Into This Laser.
The LL1505C has Bluetooth built in and a free app — the Spectra Precision Laser Remote, on iOS and Android. It does more than most people expect. But there is one thing it does not do, and it is the reason our phone rings, so we are going to lead with it rather than bury it.
Read this before you order
The app opens on a screen showing a slope percentage — ∠Y +0.000% and ◢X +0.000%. People quite reasonably try to type a grade into it. You cannot. The LL1505C is a manual slope laser and it does not accept a typed percentage.
Look at the bottom row of the first screen: the % tile is grayed out. That is Spectra’s own app telling you. Tap it anyway and the laser answers “This functionality is not supported by the Laser.”
It is there because one app runs Spectra’s whole laser range, and the models above this one do take a typed grade. This one does not.
What to do instead: use Single Axis Slope and tilt with the arrows, checking it on the rod — or let PlaneMatch work the grade out for you with an HL760 or CR700.
If you genuinely need to dial in 1.5% and have the laser hold it, you want an automatic slope laser — not this one. Call us on 1-877-866-5721 before you order, not after.
Look at the bottom row of the first screen: the % tile is grayed out. That is Spectra’s own app telling you. Tap it anyway and the laser answers “This functionality is not supported by the Laser.”
It is there because one app runs Spectra’s whole laser range, and the models above this one do take a typed grade. This one does not.
What to do instead: use Single Axis Slope and tilt with the arrows, checking it on the rod — or let PlaneMatch work the grade out for you with an HL760 or CR700.
If you genuinely need to dial in 1.5% and have the laser hold it, you want an automatic slope laser — not this one. Call us on 1-877-866-5721 before you order, not after.
Now the good part — what it actually does.
Spectra’s datasheet says the Bluetooth “eliminates the extra cost of the remote control.” On this laser that is very nearly true, and we checked every screen to be sure.
No phone, no remote
At the Laser Itself
- Power on — always starts in automatic self-leveling
- Manual mode, both axes — manual button ×1
- Single Axis Slope — manual button ×2. The ramp mode needs nothing else at all.
- Mask Mode and Standby
If sloping a drive is what you came for, the laser already does it on its own.
The free app does all of this
App or RC1402
- PlaneMatch — with an HL760 or CR700
- Rotation speed — 300 / 600 / 900 rpm
- Setting manual slope on your own — Spectra put the app at 150 ft for this
- HI alert delay, sensitivity, mask, standby, all three slope modes
- Field calibration of the X and Y level sensors
- Runtime hours, serial number, firmware, internal temperature
- Share Logs — email the laser’s own fault log to us
Spectra’s printed manual says several of these need the remote. They do not — the app has moved on since the book was written.
What the app cannot reach
The RC1402 Only
- Radio channel — for sites running several lasers
- Language — 14 of them: English, German, Italian, French, Spanish, Portuguese, Dutch, Danish, Norwegian, Swedish, Finnish, Polish, Turkish and Czech
- 330 ft of radio that behaves the same every day — more than twice the app
- Working when the phone is flat, gloved-out or back in the truck
A shorter list than Spectra implies. We would rather you bought one for the right reason than returned it for the wrong one.
This is the mode you want for a drive or a ramp. Hold the arrow and the beam walks up or down on Y — and X never stops self-leveling. While you set your fall, the laser is still watching your cross-axis and still protecting it.
Compare that with full manual mode, where Spectra’s own warning reads: “the laser is not self-leveled… there is no control for the slope accuracy and no warning for the Height of the Instrument (HI-alert).”
Every axis you take manual control of, you also take responsibility for. In single axis you hand over one and keep the guard on the other. In manual you hand over both, and nothing tells you if the tripod gets bumped — not the beam, not the alert, not the receiver. You find out when the concrete is wrong.
Compare that with full manual mode, where Spectra’s own warning reads: “the laser is not self-leveled… there is no control for the slope accuracy and no warning for the Height of the Instrument (HI-alert).”
Every axis you take manual control of, you also take responsibility for. In single axis you hand over one and keep the guard on the other. In manual you hand over both, and nothing tells you if the tripod gets bumped — not the beam, not the alert, not the receiver. You find out when the concrete is wrong.
The whole app, screen by screen
We connected a phone to an LL1505C and photographed every screen in the app — every menu, every setting, what each one does on this laser and which ones do nothing. Read the full LL1505C app guide →
Documented against Laser Remote app version 2.1.14, September 2026. Spectra update the app; if you spot a difference, tell us and we will correct this page.
Documented against Laser Remote app version 2.1.14, September 2026. Spectra update the app; if you spot a difference, tell us and we will correct this page.
LED REFERENCE
Reading the Lights.
These are the laser’s own panel indicators, written the way Spectra document them. Match what you see to the row and you know the state of the machine without walking over to it.
| Indicator | What it means |
| Green, flashing 1/sec | Self-leveling is running. Give it a moment. |
| Green, solid | Level and inside accuracy. Solid for the first 5 minutes after leveling. |
| Green, flash every 4 sec | Level and HI alert armed. This is the state you want to see all day. |
| Red, flashing 1/sec | Manual mode. The laser is not self-leveling — both axes are under your arrows. |
| Red and green together, 1/sec | Single Axis Slope. Y is under your control, X is still self-leveling. |
| Red every 5 sec | Standby. Beam off to save battery, setup preserved, HI still watching. |
| Red, flashing with a tone | HI / shock alert. Something moved the laser — a bumped leg, a sinking tripod foot. Rotation stops and the beam goes off on purpose. Re-level and check your benchmark before you trust another reading. |
| Blue | A phone is connected over Bluetooth. |
QUICK REFERENCE
Every Button, and What It Does.
You do not need this to buy the laser. You will want it the first week you own one, standing over the thing trying to remember how to get back out of manual mode. Print it, or keep this page bookmarked on your phone.
Everything here is done at the laser itself unless the row says otherwise — and the two rows that mention the RC1402 can also be done from the free app. The full manual is in the downloads below, and it is built into the app as well.
| What you press | What the laser does |
| Hold power 2 seconds | All LEDs light for 2 seconds. The laser always starts in automatic self-leveling — you cannot leave it in slope by accident overnight. |
| While self-leveling | Status LED flashes once a second. |
| Once it is level | Solid for 5 minutes, then a flash every 4 seconds — that slow flash means level and HI alert armed. |
| Manual button ×1 | Manual mode. MAN flashes red 1/sec. Arrows tilt both axes. |
| Manual button ×2 | Single Axis Slope. Red and green flash together 1/sec. Up/down slopes Y; X keeps self-leveling. |
| Manual button ×3 | Back to automatic self-leveling. |
| Hold manual 3 seconds | Standby. Beam off, leveling stopped, batteries saved — but the HI alert stays live and your setup is kept. Hold 3 seconds again to come back. |
| Arrow, then manual within 1 second | Masks that quarter of the beam. Masking always clears at power-on — yesterday’s mask never follows you to today’s job. |
| M → Rotation → 300/600/900 → E | Rotation speed. The guide names the app or the RC1402 for this. Factory setting is 900 rpm, and it restarts on the last speed used. |
| M → PlaneMatch → E → E | Runs PlaneMatch; ends in Single Axis Slope. Exit with manual ×2. The app does this too. |
| Hold E on the RC1402 | Info screen: rotation speed, internal temperature, battery, firmware and total laser runtime hours. |
QUESTIONS & ANSWERS
LL1505C Questions We Actually Get.
Grouped so you can find yours. Buying questions first, then how to work it, then what to do when something is wrong.
Before You Buy 10
Does the LL1505C kit come with a grade rod or a tripod?
Yes, both, and that is the point of this kit. It is the LL1505C laser, the HL760 receiver with its C70 clamp, the B10 rechargeable pack, the CH10 charger, a 15 foot GR151 rod graduated in tenths of a foot, the Q104025 aluminum tripod, and the 128995-00 large system case that every one of those pieces travels inside. The Q104025 is the only tripod that fits in that case, and it is already in the box, so you are not buying a case and then finding your tripod will not go in it.
How much slope can the LL1505C actually do?
Plus or minus 9 percent, which is 5 degrees. Spectra publish that figure in one place only, the User Guide troubleshooting table under error 130, so you will struggle to find it anywhere else. It is the same envelope the compensator uses to self-level, but Spectra state it separately for slope so we list it separately.
Can I type in a slope percentage such as 1.5 percent?
No. The LL1505C is a manual slope laser. You tilt the axis with the arrow keys and verify the fall on the rod, or you let PlaneMatch match an existing grade for you. If you need to dial an exact percentage into the laser, you want an automatic slope laser. Call 1-877-866-5721 and we will point you at the right one rather than let you buy twice.
Do I need the RC1402 remote, or is the phone app enough?
The free app does more than most people expect. The User Guide names the app alongside the remote for both PlaneMatch and rotation speed, so do not let anyone sell you an RC1402 for those. What the app cannot reach is the Settings menu, which holds sensitivity, radio channel, backlight and language, and the Info screen with internal temperature, firmware and total runtime hours. The remote also gives you a 330 ft radio link that behaves the same every day. Spectra publish 150 feet for setting manual slope from the app on this laser, and that is the figure we quote, but treat it as a good day rather than a guarantee: Bluetooth range moves with the weather, with whatever is standing between you and the laser, and with the phone in your hand. Our advice is to get the app on day one and add the remote when you want the settings, the diagnostics, or a link that does not care what phone you carry.
How far will the LL1505C reach?
A 1,200 meter working diameter, which is 4,000 feet, when it is paired with the HL760 receiver. That is roughly two and a half times the working diameter of the LL300N series.
What is PlaneMatch and do I need a special receiver?
PlaneMatch makes the laser match a grade that already exists. You set the receiver on your first point and then your second, and the laser works out the fall between them over ground you have not measured. It needs an HL760 or a CR700 receiver plus the RC1402 remote, and it works to typically 80 meters, or 260 feet.
Does the LL1505C kit come with rechargeable batteries?
Yes. The B10 10,000 mAh NiMH pack and the CH10 worldwide charger are both included in this kit, giving up to 55 hours of rotation and a charge time under 10 hours. The laser also runs on four D-cell alkaline batteries if you are ever caught out, and the pack charges either inside the laser or out of it so you can swap a spare.
Can the LL1505C be used vertically?
Yes. It mounts 5/8 by 11 horizontally and vertically. In vertical setup the up and down arrows set vertical slope and the left and right arrows move the line left and right, so it is a genuine second application rather than a footnote.
Is the LL1505C more accurate than the LL300N?
Yes, and by a clear margin. The LL1505C holds 1/16 inch at 100 feet against the LL300N at 3/32 inch, and it works across a 4,000 ft diameter against the LL300N's 1,650 ft. It also gives you three rotation speeds, Bluetooth and PlaneMatch, none of which the LL300N has.
How long is the warranty on the LL1505C?
Five years, and it is a no-cost warranty: no charge for parts and no charge for labor. If the laser unit fails inside those five years you send it back and it is repaired free. The HL760 receiver carries Spectra's own three year No Excuses cover on top of that.
Using Your LL1505C 8
Can I run the LL1505C on alkaline batteries?
Yes, and four D-cell alkalines are in the box as backup. Lift the B10 rechargeable pack out and the D-cells slide straight into the compartment. There is no tray, no adapter and nothing extra to buy. Figure on about 45 hours from a charged NiMH pack and about 90 hours on alkalines. The one thing that will destroy the laser is building alkaline cells into the B10 pack's own housing, because the charger will then try to charge them. Spectra's manual is blunt about it: severe damage to the unit will result if charging is attempted.
How do I set single axis slope without a remote?
Press the manual button twice at the laser. The red and green indicators flash together once a second, the Y axis comes under your arrow keys and the X axis keeps self-leveling. Press manual three times to go back to full automatic. The remote is not needed for this.
How do I pair the HL760 receiver to the laser?
On the HL760 hold the A and B buttons for two seconds to reach the menu, go to RDIO, set MODE LS, then PAIR, and you will see a rotating bar. Now go to the laser with it switched off, hold the manual button and press power at the same time, and you get PAIR OK. The receiver then shows the laser and antenna symbols. The pattern is always the same: receiver into pair first, laser second, and the laser is always paired from off with manual and power held together.
What do the laser's lights mean?
Green flashing once a second is self-leveling. Green solid is level, for the first five minutes. Green flashing every four seconds means level and the HI alert is armed, which is the state you want all day. Red flashing once a second is manual mode. Red and green together is single axis slope. Red every five seconds is standby. Blue means a phone is connected over Bluetooth.
What is Mask Mode for?
It electronically shuts the beam off in one, two or three of the four quarters. Two reasons to use it: you stop blinding a crew working off their own laser next door, and you stop your own beam bouncing back off glass or glossy metal into your receiver as a false reading. Masking always clears at power-on, so yesterday's mask never follows you to today's job.
Can I charge the battery pack outside the laser?
Yes. There is a charger jack on the laser itself, and the CH10 charger will also charge the B10 pack out of the unit. That is what lets you run a spare pack and swap it rather than stand and wait.
How do I do the math on a manual slope laser?
It is one multiplication. The drop in inches equals the distance in feet times the slope percentage times 0.12. Over a 100 foot run the numbers come out very tidily, because every 1 percent of fall is 12 inches of drop. Half a percent over 100 feet is a 6 inch drop. One percent is 12 inches. One and a half percent is 18 inches. Two percent is 24 inches. Two and a half percent is 30 inches. Three percent is 36 inches. So you measure your distance along the line of fall, slide the receiver down the rod by that amount, then tilt the beam back into the center of the receiver and the slope is set. Set it over the longest run the job allows, because the same small error over 25 feet is four times worse than it is over 100 feet.
How do I run PlaneMatch?
On the RC1402 press M, choose PlaneMatch, then E and E again. The laser and receiver do the work between them and the laser finishes in Single Axis Slope. To come out of it, press the manual button twice.
Troubleshooting 6
My phone will not connect to the laser.
The laser only listens for a phone during the first 30 seconds after power-on. If you missed that window, switch the laser off and on and connect straight away. On a first run the app also wants the license accepted and GPS switched on at the phone. None of that is a fault.
The laser stopped, the beam went off and it is warning me.
That is the HI or shock alert. Something moved the laser, usually a bumped tripod leg or a foot sinking into soft ground. Rotation stops and the beam goes off deliberately so that you cannot keep working off a reference that has shifted. Re-level the laser and check it against your benchmark before you trust another reading.
PlaneMatch failed and the laser is showing error 130.
Error 130 is a mechanical limit during PlaneMatch. It means the receiver was set outside the slope range, which is plus or minus 9 percent, or 5 degrees. Check the fall between your two points; if it is steeper than 9 percent this laser cannot match it.
The laser will not self-level, or it never finishes leveling.
Check that it is within the self-leveling range of plus or minus 5 degrees to begin with, because a tripod set badly out on a slope will leave it hunting. Also check that it is not in manual mode, where the MAN indicator flashes red once a second and the laser is not trying to level at all. Press the manual button three times to return to full automatic.
My receiver will not pick up the beam even though the head is spinning.
Work through it in this order. Check that you are inside the 4,000 ft working diameter. Check that Mask Mode is not switched on and shutting the beam off in the quarter you are standing in. Check the receiver is paired and on the same radio channel, since the LL1505C has six channels from 0 to 5 and a receiver on the wrong one will not talk to it.
Two receivers on the same laser give different readings.
Check that both are clamped at the same height on their rods, which is the usual answer. After that, confirm both are reading the beam itself rather than one of them sitting in a masked quarter, and check each rod is plumb, because a leaning rod reads high every time.
STEP BY STEP
How to Set Manual Slope on the LL1505C.
This is the one job people ring us about, so here it is the way we would walk you through it on the phone. The example sets 1% over 100 feet — the most common drive and drainage grade there is — but the method is identical for any slope. Only the number in step 6 changes.
Before you start
You need the laser on a tripod, a grade rod, a receiver, a tape measure, and either the free app or the RC1402. You do not need an automatic slope laser for this — and you do not need to type a percentage anywhere. You are going to set the fall by eye and tape, and the laser will hold it.
1
Set the laser up on the tripod
Solid ground, legs pushed in. This is the one thing you cannot rush — everything after it inherits whatever you do here.
2
Point it in the direction of your slope
The Y axis is the one that tilts. Aim the laser so Y runs down the line of fall — down the drive, down the trench, down the pad. Get this wrong and you will slope across your work instead of along it.
3
Switch it on and let it finish leveling
Do not touch anything yet. Wait until it has levelled and the HI alert has armed — the status light stops sitting solid and starts flashing every four seconds. That flash is your green light. Set slope before it arms and you are working off a reference that was still settling.
4
Measure out your distance in the direction of the slope
Run a tape from the laser along the line of fall. The longer the run you set over, the more accurate the slope — a small error over 100 ft matters far less than the same error over 20 ft. For a 1% slope, measure out 100 ft.
5
Find the level beam at that point
Take the rod and receiver out to your mark. Slide the receiver up or down the rod until the beam reads dead center — on grade. That is your starting height. Leave the rod exactly where it is standing.
6
Drop the receiver by your calculated amount
Loosen the clamp and move the receiver DOWN the rod by the drop from the table below. For 1% over 100 ft, that is 12 inches. Tighten it there. The receiver is now sitting where you want the beam to end up.
7
Tilt the beam down into the receiver
Now go to the app or the RC1402 and put the laser into Single Axis Slope. Hold the down arrow and walk the beam down until it reads center of the receiver again. That is it — the beam has fallen exactly 12 inches over 100 ft, and your slope is set at 1%.
8
Put the receiver back to your starting height
Move the receiver back UP the rod by the same amount you dropped it — 12 inches — so it is at the height you first found in step 5. Tighten it down and leave it there. That is the setting you will work off all day.
9
Work the slope
Now walk the rod anywhere along that line. Whenever the beam reads center in the receiver, the bottom of the rod is on your 1% grade — all the way out to the limit of what the laser and receiver can see. Nothing else to set, nothing else to calculate.
How far to drop the receiver — any slope, any distance
Find your slope down the left, your measured distance across the top. That is how far the receiver moves in step 6.
| Slope | 25 ft | 50 ft | 100 ft | 150 ft | 200 ft |
| 0.5% | 1.5 in | 3 in | 6 in | 9 in | 12 in |
| 1% | 3 in | 6 in | 12 in | 18 in | 24 in |
| 1.5% | 4.5 in | 9 in | 18 in | 27 in | 36 in |
| 2% | 6 in | 12 in | 24 in | 36 in | 48 in |
| 3% | 9 in | 18 in | 36 in | 54 in | 72 in |
Do it in your head
Drop in inches = distance in feet × slope % × 0.12
100 ft at 1% → 100 × 1 × 0.12 = 12 inches. 150 ft at 2% → 150 × 2 × 0.12 = 36 inches.
100 ft at 1% → 100 × 1 × 0.12 = 12 inches. 150 ft at 2% → 150 × 2 × 0.12 = 36 inches.
Two things that catch people out
1. Nothing is watching the sloped axis. Once Y is tilted, the laser is no longer self-leveling on that axis and no sensor is checking it for drift. Your X axis is still protected and the HI alert is still armed — but if the tripod is bumped, check your benchmark before you trust another reading.
2. Longer is more accurate. Setting a 1% slope over 25 ft means finding a 3 inch drop, and being a quarter inch out there is a much bigger error than being a quarter inch out over 100 ft. Set over the longest run the job allows.
2. Longer is more accurate. Setting a 1% slope over 25 ft means finding a 3 inch drop, and being a quarter inch out there is a much bigger error than being a quarter inch out over 100 ft. Set over the longest run the job allows.
The other job: matching a slope that already exists
Everything above creates a grade of a number you chose. This is the opposite job — you already have two hubs at the right elevations and you want the beam to run the line between them, whatever percentage that happens to be. Spectra call it Manual Grade Match, and you never work out the grade at all.
Manual Grade Match — six steps
1. Set the laser up over the first elevation point and aim it at the second using the sighting guides on top of the sunshade.
2. Check the beam elevation close to the laser.
3. Press the manual mode button twice for Y-axis single slope. The red and green LEDs flash together, once a second.
4. Stand the rod, receiver already clamped on it, on the second hub.
5. Drive the beam up or down with the arrow buttons — on the keypad, the RC1402N remote or your phone — until the receiver reads on grade.
6. That is the slope. Walk it and check elevations anywhere along the line.
2. Check the beam elevation close to the laser.
3. Press the manual mode button twice for Y-axis single slope. The red and green LEDs flash together, once a second.
4. Stand the rod, receiver already clamped on it, on the second hub.
5. Drive the beam up or down with the arrow buttons — on the keypad, the RC1402N remote or your phone — until the receiver reads on grade.
6. That is the slope. Walk it and check elevations anywhere along the line.
The one that ruins it
Do not change the receiver position on the rod. Not between step 2 and step 5, not to “get a better reading”. The whole method works because the receiver is the same height at both hubs — slide the clamp and you have matched nothing. Your X axis keeps self-leveling the whole time, so the cross slope stays flat while Y holds the fall.
Not sure on any of it? Call 1-877-866-5721 and we will walk you through it with the laser in front of you.
PARTS & ACCESSORIES
Buy the Piece, Not Another Kit.
Every part of every LL1505C kit, sold on its own. If you are one piece short, buy the piece — do not buy another kit.
POWER
B10$85.00
Rechargeable NiMH Pack, 10 Ah
A second pack. One on the charger, one in the laser, and you never wait on a charge.
CH10$54.95
Worldwide Charger
Spare or replacement. Charges the B10 inside or outside the laser — there is a charger jack on the unit.
CONTROL
RC1402$250.00
Radio Remote Control
Buy it for radio channel and language, for 330 ft of radio that behaves the same every day, and for the days the phone is flat or in the truck. Not for PlaneMatch or rotation speed — the free app does both.
RODS — SYSTEM CASE KITS
GR151$85.00
Grade Rod — TENTHS
In this kit. 15 ft, tenths of a foot. One of only four rods that fit inside the large case — replace it with anything else and it stops traveling with you.
GR152$85.00
Grade Rod — INCHES
Reads in feet and inches instead of tenths. Same 15 ft rod, same fit in the case — this is the one to buy if your prints are in inches.
RODS — SMALL CASE KITS
TRIPODS
Q104025$125.00
Medium Duty Aluminum Tripod
In this kit. The only tripod that fits inside the large case — wood, elevating and heavy-duty tripods will not go in. This is the spare or the replacement.
ALQR20$135.00
Heavy-Duty Head, Quick Clamps
The tripod in the small-case kits. Quick clamps instead of screw collars.
CASES
128995-00$125.00
Large “All In One” System Case
In this kit. Holds the laser, receiver, rod and tripod together — the whole kit in one box. This is the spare or the replacement.
RECEIVERS
HL760$410.40
Digital Readout Receiver w/ C70
Adds the number on the display — and the radio that makes PlaneMatch work.
CR700$559.20
Multi-Use Receiver
Rod or machine mounted. Also does PlaneMatch. Takes the C71 magnetic mount for a cab.
Prices are live from each product page. Not sure which rod or which case you need? The chart below lists what ships in every kit — or call 1-877-866-5721 and we will tell you.
DOWNLOADS
Manuals and Documentation.
All three, hosted on our own site so the links do not rot.
Spectra Precision LL1505C User Guide (PDF)
Every mode, the button sequences, the settings menu, the accuracy check and field calibration procedures, the full troubleshooting table and the specifications. This is also the manual built into the Laser Remote app.
Spectra Precision LL1505C Datasheet (PDF)
The one-page specification sheet — accuracy, working diameter, rotation speeds, power, environmental ratings and what is in each kit.
Spectra LL1505C Hands-On Training Deck (PDF)
Spectra’s own training material. Physical features, the keystrokes for every mode, and the full pairing procedures for the RC1402, the HL760 and the CR700.
Before you download anything
The whole user guide is already in the free app.
Most owners never find this. The book that lives in the case — or gets lost out of it — is on your phone at four in the afternoon when you are trying to remember what a flashing red light means. Spectra Precision Laser Remote, free on iOS and Android, no laser required to read it.
REVIEWS
What Buyers Say.
5.0
★★★★★
3 verified reviews
Same LL1505C laser
in all 3
in all 3
★★★★★
Great Tool
“Great tool solid & does everything I need and will be adding an equipment receiver as well. The customer service from contractors -tools.com is amazing.”
Verified buyer · LL1505C-2A · Jan 2026
★★★★★
“Spectra Precision hats off great product , love the case for protection and ease of carrying …. Contractor-Tools.Com Kevin knows his products very helpful…..this sells exactly why I bought !!!! Thank you”
Verified buyer · LL1505C-27 · Apr 2025
★★★★★
Well constructed componets, case is very well organized and easy to use. Laser works well and is user friendly
“easy to set up and use.”
Verified buyer · LL1505C-26 · Apr 2025
Each one was left on the LL1505C kit that buyer actually bought. The laser is identical in every kit — what changes is the receiver, the rod and the case. Printed word for word, nothing tidied up. Questions first? Call 1-877-866-5721.
Questions about the LL1505C? Talk to someone who uses these.
1-877-866-5721
www.contractors-tools.com
Experience the value of Great Customer Service!
-
Spectra Precision LL300N and LL300S
The Spectra Precision® LL300S is a ruggedized, fully automatic...
-
Spectra Precision LL300S Laser Checking Calibration from Contractors-Tools.com
How to set-up and check calibration on the Spectra LL300S Lase...
-
The LL300S Laser: Ramp Building in Single Axis Slope Mode with the RC402N and HL760 Tutorial
spectralasers.com Medium-range, highly accurate leveling solu...
categories:
