Level it automatically, slope it by hand.
The Leica Rugby 620 levels itself inside ±5°, takes a manual slope in either axis, and throws a 3,600 ft working diameter with the Rod Eye 160 Digital.
LEICA PACKAGE6019257one axis
Level it, or slope it by hand.
Press the power button and the Rugby 620 levels itself inside ±5°. When you need a fall, the Auto/Manual button takes the X axis, the Y axis or both out of self-levelling and the arrow buttons set the slope.
Leica Rugby 620 Kit — Package 6019257
Leica 6019257 Rugby 620 RED Beam Rotary Laser Package INCLUDES
Overview for the Leica 6019257 K2 Rugby 620 Red Beam Rotary Laser with Rod Eye 160 Digital - Large All in ONE Case, 13-foot Rod/TENTHS and Tripod and Rechargeable Battery
This Rugby 620 Series All in One Case allows you to keep your laser, receiver, battery, charger, tripod and grade rod all together for quick set-up and protected from the elements. GRAB AND GO with confidence knowing that you have everything you need for sitework and elevation control!!!
The rotating laser is designed for formwork and concrete applications. It comes with a lithium-ion battery pack and Rod Eye 160 Digital receiver, offering an operating range of 3,600 feet (1,100 m). It features an IP67 protection class, making it splash, water and dustproof.
This new All-in-One Protective Carrying Case allows you to keep all of your kit components in one handy ready to go Case. Protecting your Leica Laser, Receiver, Batteries, Charger, Heavy Duty Tripod, and Grade Rod from the elements.
- Self-leveling, horizontal laser
- Designed for general contractors who mainly perform formwork and concrete applications
- IP67 water and dust protection
- Rechargeable Lithium-Ion Battery that allows for Alkaline Batteries for Back-Up
- Manual Single Axis Slope Capable
- LARGE All-in-ONE Protective Carrying Case that holds all your laser components.
- Heavy Duty Tripod included and fits inside Large Protective All-in-One Carrying Case
- Fiberglass 13-Foot Tenths Rod included and fits inside Large Protective All-in-One Carrying Case
Three things the Rugby 620 does so you do not have to
It levels itself
Set it up within ±5° and press the power button. The Rugby 620 levels both axes, starts the head turning and is ready for the receiver.
It slopes by hand when you need a fall
Press the Auto/Manual button to take the X axis, the Y axis or both out of self-levelling, then set the slope with the Up and Down arrows.
It knows when the tripod moved
About 30 seconds after levelling the H.I. Alert switches on. If the tripod is knocked or settles, both axis LEDs flash red so the beam is never quietly working at the wrong height.
Four buttons, three lights
- aUp and Down arrowsSet the slope for an axis that is in Manual Mode.
- bPower buttonPress to turn the Rugby on or off.
- cAuto/Manual Mode buttonOnce: X axis manual, Y self-levels. Again: Y axis manual. Again: both axes manual. Again: back to full Automatic.
- •X and Y axis LEDsSolid green when the axis is level, flashing green while it levels, red when it is in Manual Mode. Both flashing red is an H.I. Alert.
- •Low battery LEDOff when the pack is fine. Flashing slowly at 10% (about 4 hours) left, quickly at 5% (about 2 hours), red when it cannot power the laser.
Handle, battery compartment and charge jack
Where to find each part on the Rugby 620 itself.
- aCarry handleMoulded grip for carrying the laser and setting it on the tripod.
- bLED indicatorsLevel, low battery and H.I. status at a glance.
- cButtonsPower, Auto/Manual Mode and the Up/Down arrows for slope.
- dBattery compartmentTakes the A600 lithium-ion pack or the alkaline D-cell holder.
- eCharge jackCharges the A600 lithium-ion pack in the laser. A full charge takes up to five hours.
How to use the Leica Rugby 620
Leica Geosystems how-to videos, from the Contractors Tools channel.
How to Use the Leica Rugby 620 Rotating Laser
The Leica Rugby 620 shines in grading and single-slope work: levelling for formwork, concrete and landscaping, with long-range operation, a durable build and auto-levelling.
- Slope work made simple. Add slope by hand in X, Y or both axes; the other axis keeps auto-levelling while one is sloped.
- Adjustable working range. Extend it to suit the job with the Rod Eye digital receivers.
- Rugged sites, no problem. Proven water and dust protection makes it a reliable partner in any conditions.
Watch Clint Smith of Leica Geosystems walk through more use cases and show how easy it is to set the axis slope.
How to Use the Leica Rod Eye 160 Digital Laser Receiver
The Leica Rod Eye 160 Digital receiver is the partner to your Leica Rugby, extending your working range.
- Clear digital readout. Large numbers make grade easy to monitor.
- Capture function. Store a height measurement and recall it when you need it.
- Anti-strobe protection. Filters out strong strobe flashes on site for reliable readings.
Learn from product expert Clint Smith how to use the receiver with your Leica Rugby.
Leica Rod Eye 160 Digital — the part you hold all day
- 120 mm (5 in) extended detection window
- Numeric readout: 90 mm (3.5 in) numeric readout
- Detection accuracies: Very fine ± 0.5 mm · Fine ± 1 mm · Medium ± 2 mm · Coarse ± 3 mm · Very coarse ± 5 mm
- 15 arrow channels, anti-strobe: Yes
- 3,600 ft working diameter with the Rugby 620
- 2 × AA, 50+ hours, IP67, rod bracket included

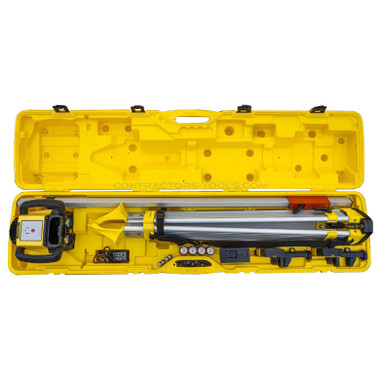

How it all fits in the large case
The large All-in-One protective carrying case holds the whole kit: laser, receiver, batteries, the heavy-duty tripod and the grade rod all travel and store together, so it is ready to set up the moment you open it.
- aRugby 620 laser
- bRod Eye 160 Digital receiver on its bracket
- cA600 lithium-ion battery pack and A100 charger
- dCTP-104 heavy-duty aluminum tripod
- e13-foot fiberglass grade rod, marked in tenths
- fUser manual
What the spec sheet leaves out
Automatic Mode
The Rugby always starts in Automatic Mode and levels itself if it is set up within the 5° self-levelling range.
Manual Mode: X, Y or both
The Auto/Manual button steps through X axis manual, Y axis manual, both axes manual and back to Automatic. A red LED marks every axis that is in Manual Mode; the Up and Down arrows set the slope.
H.I. Elevation Alert
Becomes active 30 seconds after the laser has levelled and keeps watching the position of the beam. If the tripod is knocked or settles, both axis LEDs flash red.
Batteries
The A600 lithium-ion pack runs the laser up to 120 hours on a full charge, and charges in a maximum of five hours. The laser also takes four D-cells in an alkaline holder.
Specifications
Leica Rugby 600 Series data sheet, 08.26 edition.
| Function | Self-levelling horizontal, manual slope in one axis |
| Grade range | – (manual slope by hand, no percentage readout) |
| Laser class | Class 1 |
| Laser type | 635 nm (visible red beam) |
| Accuracy | ± 3/32" at 100 ft (± 2.2 mm at 30 m) |
| Self-levelling range | ± 5° |
| Rotation | 10 rps |
| Working diameter with the Rod Eye 160 Digital | 3,600 ft (1,100 m) |
| H.I. elevation alert | Yes |
| Power in this kit | Rechargeable lithium-ion pack with charger |
| Run time on a full charge | Up to 120 h (A600 lithium-ion pack) |
| Charge time | 5 hours maximum (A100 charger) |
| Working temperature | -4°F to +122°F (-20°C to +50°C) |
| Protection (with and without battery) | IP67 |
| Dimensions (H × W × D) | 212 × 239 × 192 mm (8.4 × 9.4 × 7.6 in) |
| Weight with battery | 2.56 kg (5.6 lb) |
| Warranty | Lifetime manufacturer’s warranty; 5 years no cost (PROTECT by Leica Geosystems) |
| Part number | 789924 |
| Extended detection window | 120 mm (5 in) |
| Numeric readout | 90 mm (3.5 in) numeric readout |
| Detection accuracies | Very fine ± 0.5 mm · Fine ± 1 mm · Medium ± 2 mm · Coarse ± 3 mm · Very coarse ± 5 mm |
| Arrow display channels | 15 |
| Anti-strobe | Yes |
| Battery | 2 × AA, 50+ hours |
| Protection | IP67 |
| Warranty | 3 years no cost |
Every Leica Rugby 620 package we sell
Pick by receiver, by power, and by whether you want the tripod and rod in the box.
| Package | Receiver | Power | Case & extras | Working diameter | Our price |
|---|---|---|---|---|---|
| 6011152 | Rod Eye 120 | Alkaline batteries | Laser carrying case | 2,600 ft | $1,172.00 |
| 6011151 | Rod Eye 120 | Lithium-ion pack + charger | Laser carrying case | 2,600 ft | $1,468.00 |
| 6019256 | Rod Eye 120 | Alkaline batteries | All-in-One case, CTP104 tripod, 13-ft rod (tenths) | 2,600 ft | $1,571.20 |
| 6019253 | Rod Eye 120 | Alkaline batteries | All-in-One case, CTP104 tripod, 13-ft rod (inches) | 2,600 ft | $1,955.20 |
| 6019425 | Rod Eye 120 | Alkaline batteries | All-in-One case, CTP104 tripod, 13-ft rod (inches) | 2,600 ft | $1,571.20 |
| 6005983 | Rod Eye 140 Classic | Alkaline batteries | Laser carrying case | 3,600 ft | $1,236.00 |
| 6005984 | Rod Eye 140 Classic | Lithium-ion pack + charger | Laser carrying case | 3,600 ft | $1,532.00 |
| 6005985 | Rod Eye 160 Digital | Alkaline batteries | Laser carrying case | 3,600 ft | $1,280.00 |
| 6005986 | Rod Eye 160 Digital | Lithium-ion pack + charger | Laser carrying case | 3,600 ft | $1,576.00 |
| 6019257 You are here | Rod Eye 160 Digital | Lithium-ion pack + charger | All-in-One case, CTP104 tripod, 13-ft rod (tenths) | 3,600 ft | $1,975.20 |
| 6019426 | Rod Eye 160 Digital | Lithium-ion pack + charger | All-in-One case, CTP104 tripod, 13-ft rod (inches) | 3,600 ft | $1,975.20 |
Same Rugby 620 laser in every package. Prices are live from the store.
Rugby 610 vs 620 vs 640 vs 640G vs 680
The 610 is one button and level only, the 620 adds manual slope, the 640 and 640G add vertical and the remote, and the 680 dials in grade on both axes.
| Technical data | Rugby 610 | Rugby 620 This model | Rugby 640 | Rugby 640G | Rugby 680 |
|---|---|---|---|---|---|
| Functionality | Self-levelling horizontal, one button | Self-levelling horizontal & manual slope in one axis | Horizontal, vertical, 90° & manual slope in dual axis | Horizontal, vertical, 90° & manual slope in dual axis | Horizontal, dial-in grade in dual axis |
| Grade range | – | – | – | – | ± 8% dual grade |
| Laser class | Class 1 | Class 1 | Class 2 | Class 2 | Class 1 |
| Beam | 635 nm red | 635 nm red | 635 nm red | 520 nm green | 635 nm red |
| Accuracy | ± 3/32" at 100 ft | ± 3/32" at 100 ft | ± 3/32" at 100 ft | ± 3/32" at 100 ft | ± 1/16" at 100 ft |
| Self-levelling range | ± 5° | ± 5° | ± 5° | ± 5° | ± 5° |
| Rotation | 10 rps | 10 rps | 0, 2, 5, 10 rps | 0, 2, 5, 10 rps | 10 rps |
| Scanning, plumb, sleep mode | – | – | Yes | Yes | – |
| Working diameter, Rod Eye 120/120G | 2,600 ft (800 m) | 2,600 ft (800 m) | 1,650 ft (500 m) | 1,300 ft (400 m) | 2,950 ft (900 m) |
| Working diameter, Rod Eye 140/160 | 3,600 ft (1,100 m) | 3,600 ft (1,100 m) | 2,000 ft (600 m) | – | 3,600 ft (1,100 m) |
| RC400 remote | – | – | 650 ft (200 m) | 650 ft (200 m) | – |
| Run time, Li-Ion | Up to 120 h | Up to 120 h | Up to 80 h | Up to 70 h | Up to 75 h |
| Run time, alkaline | Up to 60 h | Up to 60 h | Up to 60 h | Up to 60 h | Up to 60 h |
| Working temperature | 14°F to 122°F | -4°F to 122°F | -4°F to 122°F | -4°F to 122°F | -4°F to 122°F |
| Protection | IP67 | IP67 | IP67 | IP67 | IP67 |
| No-cost warranty | 5 years | 5 years | 5 years | 5 years | 5 years |
| Example package, our price | 6011150 $928.00 | 6011152 $1,172.00 | 6005987 $1,530.00 | 6011487 $1,891.25 | 6006010-K2 $2,653.80 |
Every figure is from the Leica Rugby 600 Series data sheet (851210en, 08.26). Working diameter depends on the receiver. Prices are live from the store.
Downloads
Leica Rugby 620 — Questions & Answers
What comes in the Leica Rugby 620 6019257 package?
How far does this kit reach?
How long does the laser run on one charge?
What happens if I forget to charge the battery?
Do the tripod and grade rod fit in the case?
Is the grade rod in tenths or inches?
What is the difference between the Rugby 610 and the Rugby 620?
Can the Rugby 620 dial in a percent grade?
What laser class is the Rugby 620?
Will the Rugby 620 work with other Leica Rod Eye receivers?
Is the laser weatherproof?
What warranty comes with it?
-
5 Laser level
Posted by Paul on 31st Oct 2025
We already have two of these. Great tool
